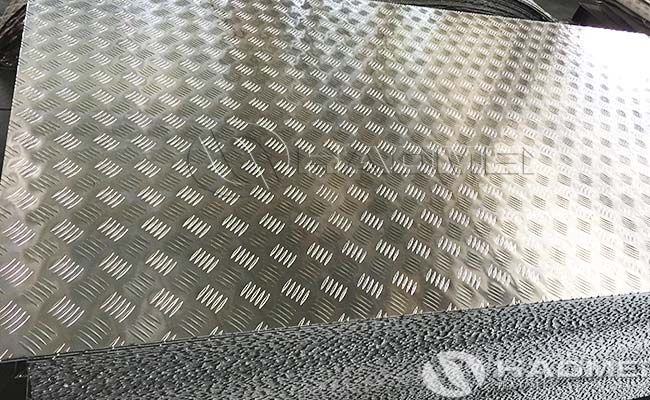

5754 aluminum chequer plate offers excellent corrosion resistance and weldability. After heat treatment and processing, it possesses a certain strength and good ductility, making it suitable for manufacturing various structural parts. 5754 H114 aluminum chequered sheet is widely used in applications requiring lightweight and excellent corrosion resistance, such as marine, automotive, construction, and flooring, particularly where anti-slip and enhanced strength are required.

Specifications of 5754 Aluminum Chequer Plate

Alloy: 5754

Temper: H111, H114

Thickness: 1.2mm-10mm (1.5mm, 2.0mm, and 3.0mm are common).

Width: 100mm-2650mm (extra-wide plates available upon request).

Length: Cut to size, with 2000mm-6000mm common.

Pattern Types: Five-bar (mainstream), pointer, diamond, orange peel, etc.

Special Requirements: Lamination, cut-to-length, and custom-shaped cutting are available.

Core Performance of 5754 Aluminium Chequered Plate:

1. Mechanical Performance Enhancement

- H114 Properties:

Cold work hardening achieves a hardness of HB 65-80, a tensile strength ≥190 MPa, a yield strength ≥110 MPa, and an elongation ≥12%.

- Compared to other properties:

H112 (annealed and lightly worked) has lower strength, while H24 (work hardened + partial annealing) has higher elongation, but H114 offers superior overall performance in anti-skid applications.

- Fatigue Performance:

Under alternating loads (such as vehicle vibration), aluminum chequer plate 5754 H114's fatigue life exceeds that of ordinary carbon steel, making it suitable for long-term load-bearing structures.

2. Corrosion Resistance Mechanism:

- Magnesium oxide film:

Magnesium forms a dense MgO·Al₂O₃ composite oxide film on the aluminum surface, blocking chloride ion penetration and providing seawater corrosion resistance 1.5 times that of 304 stainless steel.

- Electrochemical Protection:

In salt spray environments, 5754 aluminum chequered sheet acts as an anode, preferentially corroding, protecting connected components (such as steel brackets) and extending the life of the overall structure.

3. Quantified Anti-Slip Performance

- Friction Coefficient:

The five bar aluminum chequer plate has a dry friction coefficient of ≥0.65 and a wet friction coefficient of ≥0.45 (with a water film thickness of 1mm), significantly exceeding that of flat aluminum plates (0.3 in dry state and 0.1 in wet state).

- Drainage Design:

With a pattern spacing of 15-20mm, drainage efficiency reaches 90% at slopes ≥5%, eliminating the risk of water accumulation and slips.

4. Processing Adaptability

- Cold Formability:

Can be bent up to 90° (with an inner diameter ≥3 times the plate thickness) without cracking, making it suitable for curved decks or special-shaped structures.

- Welding Compatibility:

When welding with 5052 and 6061 aluminum alloys, the weld strength reaches over 85% of the parent material, making it suitable for the assembly of complex structures.

Application Scenarios of 5754 Aluminium Chequer Plate:

1. Shipbuilding and Marine Engineering

Hull decks, cabin floors, and gangways: Resistant to seawater corrosion, the anti-slip design ensures personnel safety.

Offshore platforms and pontoons: High strength and weather resistance adapt to harsh environments.

2. Transportation

Vehicle flooring (trucks and buses): Anti-slip and wear-resistant, reducing weight and improving load efficiency.

Subway and train treads: Anti-slip requirements in high-traffic areas.

3. Construction and decoration

Industrial plant and warehouse floors: Anti-slip and pressure-resistant, easy to clean and maintain.

Stairs and platforms: Meet public safety standards.

4. Other sectors

Refrigerated truck bodies: Resistant to low temperatures and corrosion, maintaining cargo quality.

Elevator cabs: Anti-slip and aesthetically pleasing, enhancing the user experience.

5754 H114 aluminum chequer plate, with its combined advantages of high strength, corrosion resistance, and anti-slip properties, has become the material of choice in the marine, transportation and construction industries.
