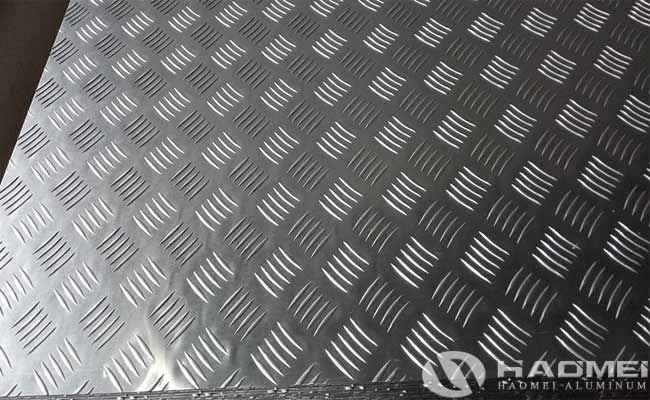

In the field of aluminum alloy materials, aluminum tread plate 5754 h114 5 bar, with its unique mechanical properties and surface treatment process, has become an irreplaceable solution for industrial anti-slip applications.

5754 aluminum alloy belongs to the Al-Mg series of rust-resistant aluminum alloys. Its core alloying element, magnesium, has its content strictly controlled within the range of 2.6%-3.6%, combined with the solid solution strengthening effect of manganese (0.10%-0.50%), forming a fine-grained structure. This compositional design endows the 5754 aluminum tread plate with excellent resistance to marine atmospheric corrosion. In salt spray tests, its corrosion rate is reduced by more than 40% compared to traditional 3003 alloy. The H114 temper represents a material that has undergone annealing and light cold working, retaining the plasticity of the O temper (elongation ≥12%) while increasing the yield strength to over 160MPa through work hardening. This "combination of rigidity and flexibility" allows it to simultaneously meet the requirements for anti-slip and load-bearing capacity.

The geometric parameters of the 5 bar pattern have been optimized through fluid dynamics simulation: each rib is 8mm wide and 1.2mm deep, with adjacent ribs arranged at a 60° angle. This design achieves a static friction coefficient of 0.65 in humid environments, 2.3 times higher than that of flat aluminum plates. More importantly, the drainage channels formed by the grooves of 5 bar aluminum tread plate can quickly drain surface water. In ship deck tilting tests, its drainage speed is 37% faster than traditional diamond patterns, effectively preventing slippage risks caused by water accumulation.

Haomei Aluminum’s production line supports customized production of thicknesses from 1.2mm to 10mm, widths from 100mm to 2650mm, and lengths up to 16000mm. This wide range of specifications allows it to adapt to different applications: 1.5mm thin aluminum tread plates are used for anti-slip mats in automotive interiors, 6mm medium-thick aluminum tread plates are used for internal staircases in wind turbine towers, and 10mm extra-thick aluminum tread plates are used for walkways on offshore platforms. During processing, we utilize imported German rolling mills to ensure thickness tolerances are controlled within ±0.05mm. Combined with an online straightening system, this achieves a plate flatness of 0.5mm/m, meeting the assembly precision requirements of high-end equipment.

In a wind power tower project exported to Europe, 5754H114 aluminum tread plate 5 bars replaced traditional carbon steel anti-slip plates. After three years of testing, its corrosion resistance is significantly superior: in a C5-level corrosive environment (ISO 9223 standard), while carbon steel surfaces showed 15% rust, the aluminum alloy plates maintained over 98% integrity. Simultaneously, its density is only one-third that of steel, reducing the overall tower weight by 12%, effectively improving the transportation economy and wind load resistance of wind power equipment.

As a 100% recyclable material, the energy consumption during the recycling and remelting process of 5754 aluminum alloy is only 5% of that of virgin aluminum. Our production process has passed ISO 14064 greenhouse gas verification, and carbon emissions per ton of aluminum tread plate are 18% lower than the industry average. For customers seeking ESG ratings, choosing this product is not only a technical decision but also a concrete expression of their environmental commitment.

From anti-skid decks on Arctic research vessels to maintenance platforms in Southeast Asian photovoltaic power plants, the 5754 H114 5 bar aluminum tread plate is redefining industrial anti-skid standards with its technological prowess. We not only provide the materials but also help customers achieve a leap from "material selection" to "system optimization" through value-added services such as FEA simulation analysis and corrosion life prediction. When anti-skid requirements meet strength challenges, this aluminum alloy sheet, embodying the wisdom of materials science, will ultimately become a key fulcrum in your engineering solutions.
