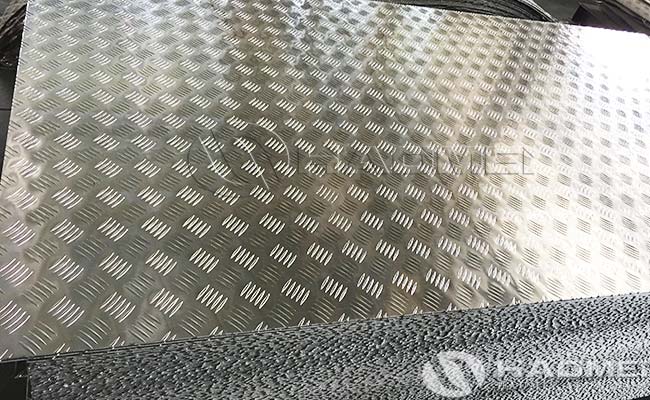

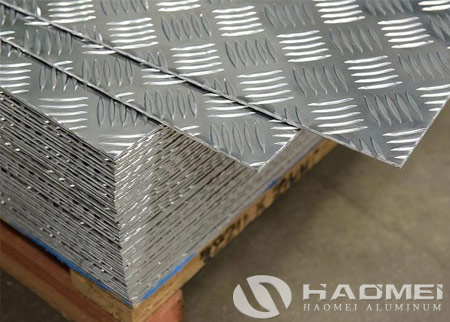

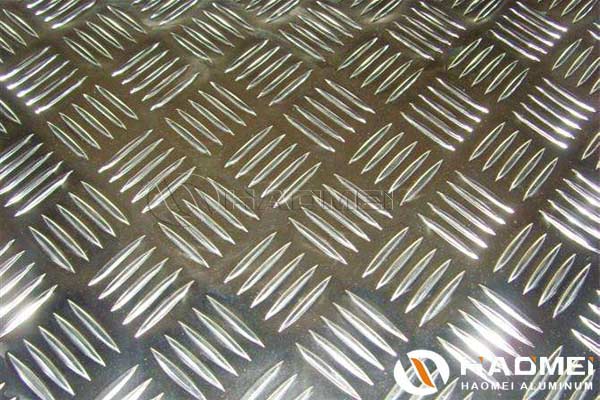

Aluminium 5 bar chequer plate have five bars tread texture, which gives 5 bar chequer plate excellent anti-skid properties. And 5 bar aluminium chequer plate is often used in industrial settings for stairways, catwalks, ramps, and walkways where wet conditions may otherwise pose a risk of sliding or falling. These non-slip properties also make it a common solution for ambulance floors and for the footplates of firetrucks, as well as domestic truck beds and trailer floors.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |
Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
· Slip resistant surface
· Extremely durable—requires no maintenance
· Weather & corrosion resistant
· Bright reflective surface
· Unique decorative appearance
1. Floor Covering for hygiene and slip resistance
2. Door Protection as kick plates or as a full door cladding
3. Wall and Column Protection to prevent impact damage where hand trucks, trolleys, sack carts etc are operated.
4. Vehicle body, Vans, Trailer tailgate ramps and flooring.
5. Access Ramp covering for wheelchairs
6. Truck Bed, Tool Boxes
7. Stair Treads, Step Ladders, Walkways
