Colored Diamond Plate Sheets
Sep-20-2026
Colored diamond plate sheets are expanding the role of aluminum tread plate beyond traditional industrial flooring. With a raised diamond pattern for grip and a color-coated surface for visual definition, these sheets support projects where safety, durability, and appearance need to work together. They are increasingly specified for vehicle bodies, toolboxes, wall cladding, access steps, retail fixtures, and marine equipment.

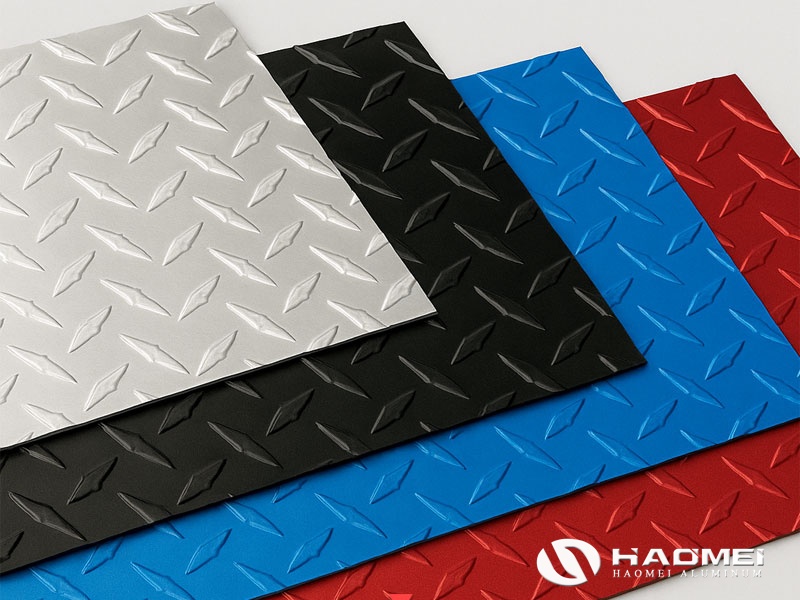

Unlike plain painted metal, a well-made color diamond aluminum plate begins with stable base material and controlled embossing. The diamond pattern must remain distinct after coating, while the paint film needs even coverage across the peaks and recessed areas. This balance affects both the finished appearance and practical slip resistance of the sheet.
The technical foundation of colored diamond plate sheets is the same as that used for dependable aluminum tread products. Alloy selection is determined by the environment, forming requirements, and target thickness. For general indoor cladding, cabinets, and decorative applications, 3003 aluminum provides good formability and reliable corrosion resistance. For truck bodies, wet areas, and coastal equipment, 5052 aluminum is commonly selected because its magnesium-bearing composition offers stronger resistance to marine and industrial atmospheres.
In the aluminum trade, 3003-H22/H24 and 5052-H32 are familiar tempers for tread plate production. They offer a useful balance between rigidity and fabrication performance, allowing sheets to be cut, bent, riveted, or bonded without making routine downstream processing unnecessarily difficult. Material traceability, thickness control, and pattern consistency are checked before shipment, helping fabricators receive sheets that behave predictably from one batch to the next.
Our production approach connects coil preparation, embossing, surface treatment, coating coordination, and final inspection. This makes it possible to supply colored tread sheets in black, white, gray, red, blue, and customized shades while maintaining a clean pattern profile. Customers seeking a base material for fabrication can also review our diamond plate aluminum sheet options for dimensions and specifications suited to their project requirements.

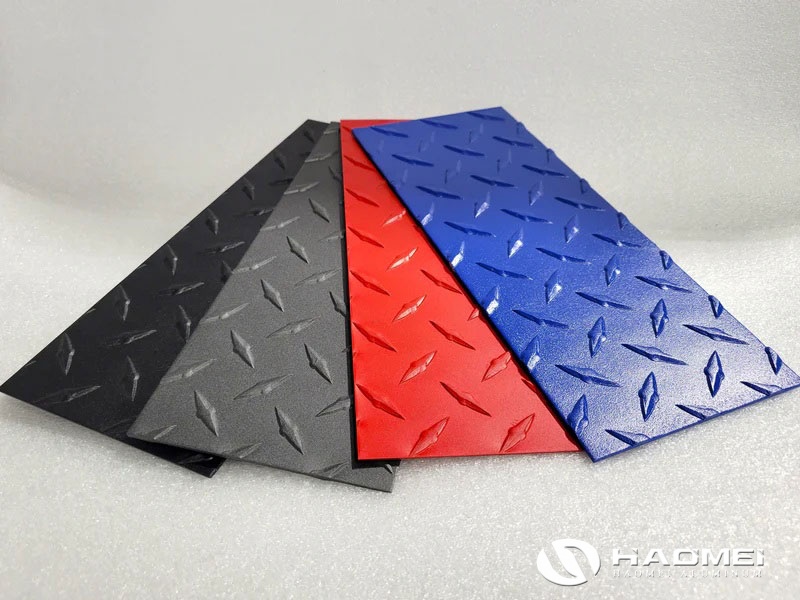

Color adds identification and visual impact, but the coating system also serves as a protective barrier. Proper pretreatment improves adhesion between aluminum and the finish, reducing the risk of premature peeling in demanding service conditions. Polyester coatings are widely used for general applications, while higher-performance systems may be considered where UV exposure, humidity, or chemical contact is more severe.
A relevant industry detail is that coil-coated aluminum finishes are commonly specified by dry film thickness, often around 20 to 25 microns on the exposed face for standard polyester systems. Actual requirements vary by coating type and end use, but film thickness, color uniformity, gloss, adhesion, and bend performance should be evaluated as part of a complete quality plan rather than judged by appearance alone.
For export projects, surface protection is equally important. Protective film, interleaving, moisture-resistant packaging, and secure palletizing help preserve the coating and embossed pattern through container loading, sea transit, and local handling. These details are especially valuable for colored materials because scratches are more visible than on mill-finish aluminum.

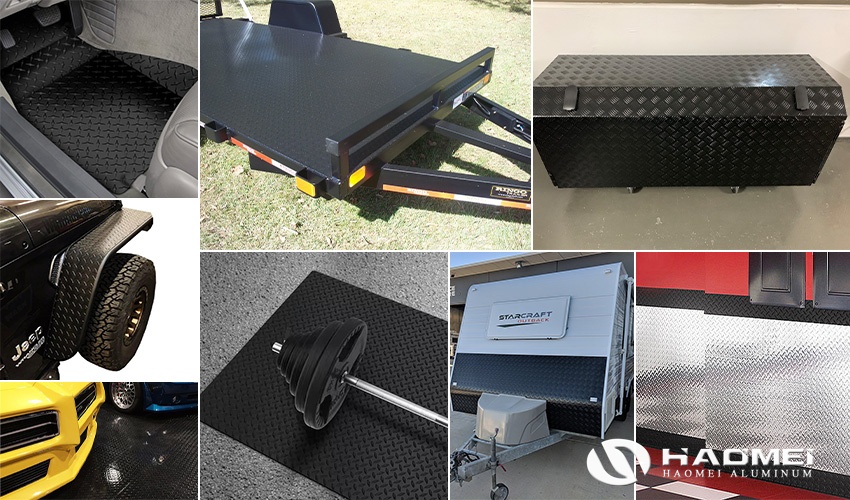

Colored diamond plate sheets offer practical solutions across a broad range of industries:
Transportation and trailers: Black, gray, and custom-colored sheets are used for running boards, ramps, pickup accessories, trailer interiors, and protective body panels.
Commercial interiors: The embossed surface gives counters, wall panels, bar fronts, display stands, and shop fittings an industrial-modern finish without the weight of steel.
Marine and outdoor equipment: Corrosion-resistant aluminum grades with suitable coatings support lockers, walkways, hatch covers, and protective panels exposed to moisture.
Safety and access areas: Colored patterns can visually define steps, low platforms, machine surrounds, and service zones while retaining the traction benefits of tread plate.
Toolboxes and equipment housings: A coated diamond surface resists routine wear and provides a recognizable, finished look for mobile service units and protective enclosures.
Buyers should consider alloy, temper, base thickness, overall thickness including pattern height, coating type, color tolerance, and required sheet size. A thicker sheet may be necessary for structural or high-traffic use, while thinner gauge material can be a practical choice for decorative cladding and cabinet panels. It is also useful to confirm whether the application requires one-side coating, protective film, custom cutting, or matching batches for a continuous installation.
Colored diamond plate sheets give architects, fabricators, distributors, and equipment manufacturers a flexible material option: the recognizable traction pattern of aluminum tread plate paired with a finish tailored to the project. With controlled material selection and inspection focused on the details that matter in fabrication and use, color becomes a functional part of the specification rather than a surface-level addition.
