Black Aluminum Diamond Plate Sheet
Oct-28-2026
Black aluminum diamond plate sheet combines the recognizable raised tread pattern of aluminum checker plate with a durable black surface treatment. It is selected when a project needs more than basic corrosion resistance and traction: it also needs a clean, modern appearance that can stand up to regular handling, weather, and industrial use. From trailer components to vehicle interiors and architectural protection panels, this material provides a highly functional finish without the weight penalty of steel.

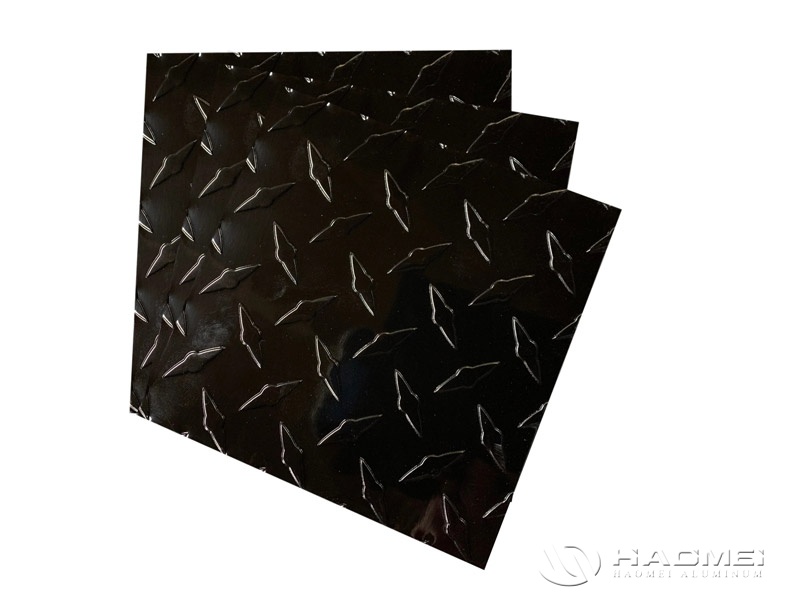

Black aluminum diamond plate sheet is an embossed aluminum sheet with a raised diamond pattern, commonly called tread plate, checker plate, or five-bar plate depending on the pattern. The black color is usually applied through powder coating, PVDF coating, painted coating, or anodizing. Each finishing route has a different balance of appearance, hardness, UV stability, and cost.
In production, the base aluminum sheet is rolled with the tread pattern before coating. This sequence matters. Well-controlled embossing produces consistent raised bars, clear pattern definition, and stable sheet flatness. A properly applied coating must cover the peaks and valleys evenly while preserving the anti-slip function of the tread.
For projects requiring a purpose-built surface, our black aluminum diamond plate range can be specified by alloy, thickness, dimensions, and coating requirements rather than treated as a one-size-fits-all decorative panel.
The right specification should be selected based on loading conditions, fabrication methods, exposure environment, and appearance expectations. Common technical options include:
Alloys: 3003 and 3105 are widely used for formed and coated decorative applications. 5052 is preferred for higher strength and better corrosion resistance, especially in marine, transportation, and outdoor environments.
Temper: H22, H24, H32, and H34 are common tempers. Softer tempers improve bending and forming, while higher-strength tempers provide better resistance to denting.
Thickness: Typical stock thicknesses range from 1.0 mm to 6.0 mm. Lighter gauges work well for wall panels, cabinets, and trim; thicker sheets are more suitable for steps, toolboxes, truck beds, and protective flooring.

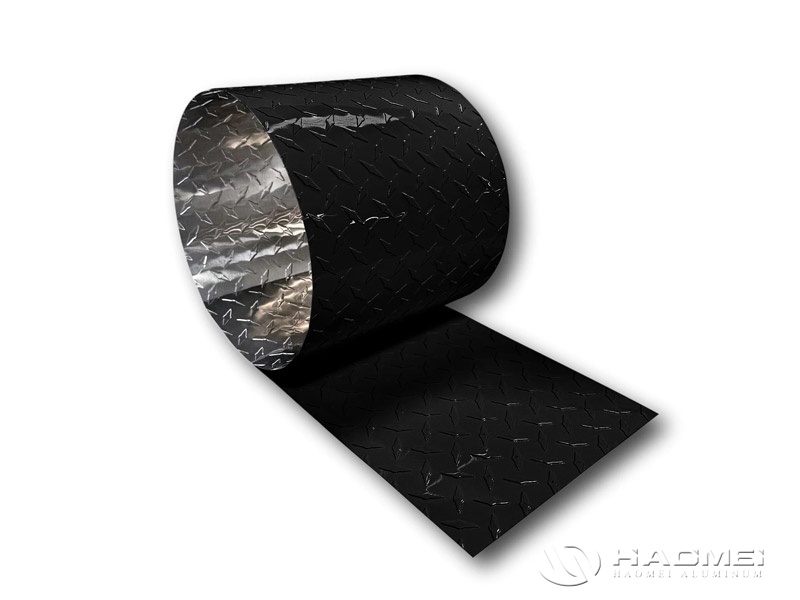

Width and length: Standard sheet formats include 4 x 8 ft, 4 x 10 ft, 5 x 10 ft, and custom cut sizes. Coil supply is practical for continuous fabrication lines and high-volume stamping operations.
Pattern: One-bar, two-bar, five-bar, and diamond patterns are available. Diamond patterns are especially popular in North American transport and utility markets.
Finish: Matte black, gloss black, textured black, and semi-gloss black can be selected according to visual and cleaning requirements.
When comparing thicknesses, evaluate both base-metal gauge and tread height. Raised diamonds contribute stiffness and grip, but they do not replace the need to choose sufficient base thickness for structural loading.
The most immediate advantage is the combination of low weight and practical durability. Aluminum is significantly lighter than steel, helping reduce vehicle weight, simplify installation, and improve handling during fabrication. The raised pattern improves footing and helps hide minor scuffs that would be highly visible on a smooth black panel.
Black finishes also offer a distinct design advantage. They create strong visual contrast around polished metal fittings, bright vehicle paint, wood surfaces, and composite panels. For trailer builders and vehicle upfitters, the finish can make protective cladding look intentional rather than purely utilitarian.
Corrosion resistance is another important strength. Aluminum naturally forms an oxide layer, while a quality black coating adds a further barrier against moisture, dirt, and routine cleaning chemicals. In my experience, the service life of black tread plate depends heavily on edge treatment, coating adhesion, and correct material selection. A 5052 base with a well-cured exterior-grade coating is a more dependable choice than a low-cost decorative coating when panels will face salt spray, road grime, or frequent washdowns.
Other benefits include:
Excellent strength-to-weight ratio
Good weldability for suitable alloy and coating-removal procedures
Easy cutting, drilling, routing, and fastening
Reduced glare compared with bright mill-finish tread plate
Low maintenance and easy routine cleaning
Recyclable aluminum substrate

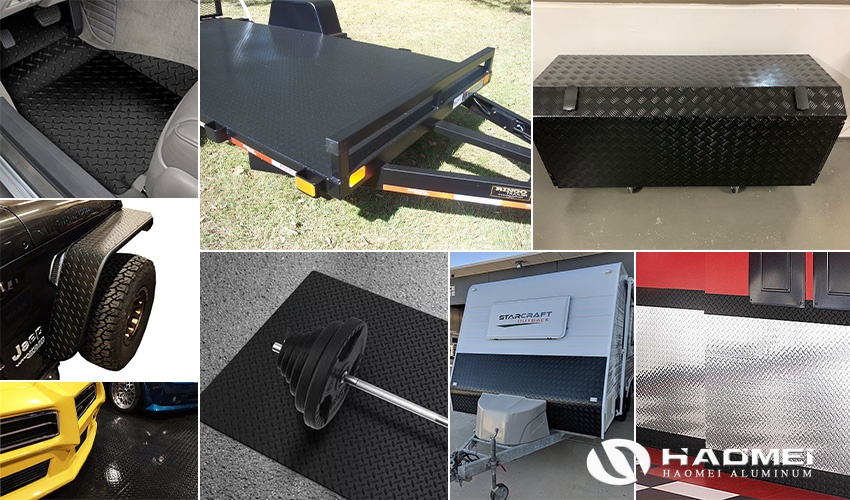

Black aluminum diamond plate sheet is widely used in truck and trailer fenders, running boards, toolboxes, ramps, RV trim, pickup-bed accessories, equipment guards, and utility vehicle interiors. It is also effective for stair treads, entryway protection, wall kick plates, garage accents, retail displays, and industrial workstations.
For flooring or walking surfaces, traction must be assessed under actual conditions. Diamond tread improves grip, but oil, ice, heavy mud, and standing water can still create slip risks. Where safety is critical, specify appropriate drainage, cleaning procedures, and a coating texture designed for the operating environment.
Fabricators sourcing standard panel formats often use 4x8 aluminum diamond plate sizes to reduce scrap and simplify nesting plans. Custom widths and lengths can further improve material yield for repeat production.
Before bending black tread plate, confirm the minimum bend radius for the alloy, temper, thickness, and coating system. Bend lines should be tested on samples because heavy embossing and rigid coatings can crack if formed too tightly. For welded assemblies, remove coating near the weld zone, use suitable filler metal, and restore protection afterward where appearance or corrosion exposure requires it.
A reliable supplier should inspect thickness tolerance, pattern uniformity, sheet flatness, coating color consistency, adhesion, gloss, and packaging protection. Protective film, interleaving paper, reinforced corners, and seaworthy export packing are not minor details; they directly affect the condition of black finished sheets upon arrival.
Black aluminum diamond plate sheet delivers an appealing balance of technical performance and visual impact. With the correct alloy, thickness, tread pattern, and coating, it becomes a durable solution for transportation, industrial protection, commercial design, and outdoor fabrication projects.
