4ft x 8ft Diamond Plate
Aug-21-2026
A 4ft x 8ft diamond plate gives fabricators, trailer builders, and maintenance teams a practical full-sheet format for durable walking and protective surfaces. Measuring 48 x 96 inches, or approximately 1219 x 2438 mm, this size reduces seams on platforms, vehicle floors, ramps, and wall linings while remaining compatible with common cutting, bending, and fastening equipment.

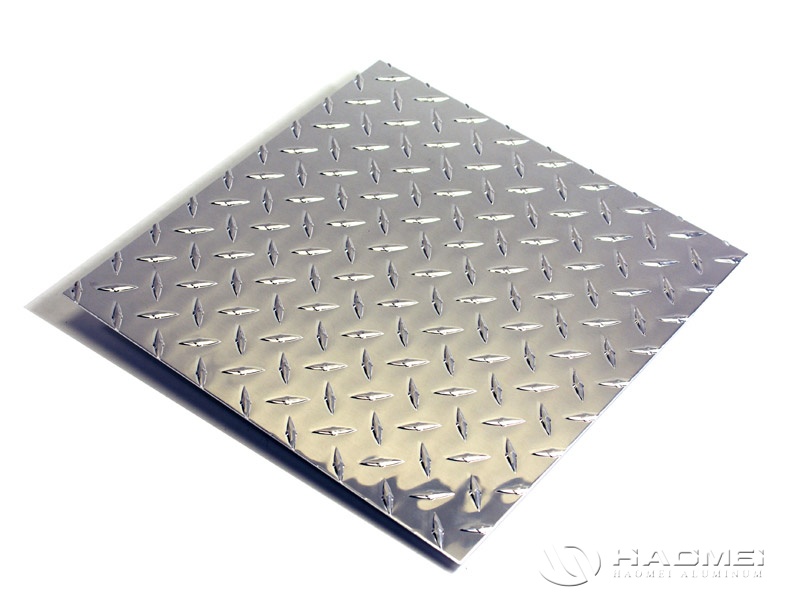

Often called aluminum tread plate, checker plate, or diamond plate sheet, the material combines an aluminum base with a raised diamond pattern. The pattern is rolled into the sheet surface, creating additional traction under work boots, wheeled equipment, and frequently handled loads. It also provides a clean, industrial appearance that is useful where a plain metal floor or panel would show scuffs quickly.
Material performance begins with alloy and temper selection. For general-purpose applications, 3003 aluminum tread plate is widely used because it offers good formability, corrosion resistance, and economical processing. It is well suited to interior flooring, toolboxes, decorative wall protection, and light-duty truck or trailer linings.
Where moisture, road salt, or more demanding service conditions are involved, 5052 aluminum diamond plate is often the stronger choice. Its magnesium-bearing composition provides improved corrosion resistance and higher strength compared with 3003. This makes it a common option for marine walkways, utility trailers, dock equipment, and outdoor access platforms.
A relevant industry detail is that aluminum tread plate is commonly supplied to ASTM B632/B632M, the specification covering aluminum-alloy rolled tread plate. Buyers should confirm not only the nominal thickness, but also alloy, temper, tread orientation, dimensional tolerances, and applicable surface requirements. These details have a direct effect on forming behavior, load performance, and installation fit.
The 4 x 8 ft format is familiar to contractors and manufacturers because it can cover a large area with fewer joints. Fewer seams may simplify cleaning and reduce locations where water, debris, or corrosive residue can accumulate. For vehicle bodies and equipment enclosures, a full sheet can also be cut into coordinated floor, side-panel, and step components to maintain a consistent tread direction.
Our 4x8 aluminum diamond plate range can be specified in multiple thicknesses and finishes according to the intended application. Mill-finish material is often selected for fabrication efficiency, while polished or coated surfaces can support projects where appearance and easy maintenance are equally important.
The primary value of aluminum diamond plate lies in its balanced performance profile:
Slip-resistant surface: Raised diamonds improve footing compared with smooth sheet, particularly in entryways, service areas, and transport equipment.
Low weight: Aluminum weighs roughly one-third as much as steel by volume, helping vehicle and mobile-equipment builders manage overall weight.
Corrosion resistance: Aluminum naturally forms a protective oxide layer, supporting long-term use in humid, outdoor, and washdown-prone conditions.
Fabrication flexibility: Sheets can be sawn, sheared, routed, drilled, riveted, welded, or bent using procedures appropriate to the chosen alloy and temper.
Easy upkeep: The patterned surface helps disguise minor wear, while routine washing is generally sufficient for many commercial installations.
Thickness selection should reflect actual support spacing and expected point loads rather than visual preference alone. A thin tread plate can serve effectively as a decorative cladding or wall guard when fully supported. Floor panels, ramps, and machine access surfaces may require thicker material, closer framing intervals, or additional structural reinforcement. The raised pattern contributes grip but should not be treated as a substitute for sound structural design.
4ft x 8ft diamond plate is used across transportation, construction, marine, energy, food-service support areas, and commercial facilities. Trailer manufacturers use it for decks, fenders, kick plates, and tool storage. Truck body builders apply it to steps, interior linings, and protective panels. In factories and warehouses, it is installed on stair treads, mezzanine walkways, maintenance platforms, and equipment guards.
For marine and coastal work, 5052-grade tread plate can provide a practical combination of traction and saltwater resistance. In retail, hospitality, and architectural projects, polished or color-coated diamond plate may be used for counters, feature walls, elevator protection, and durable interior trim.

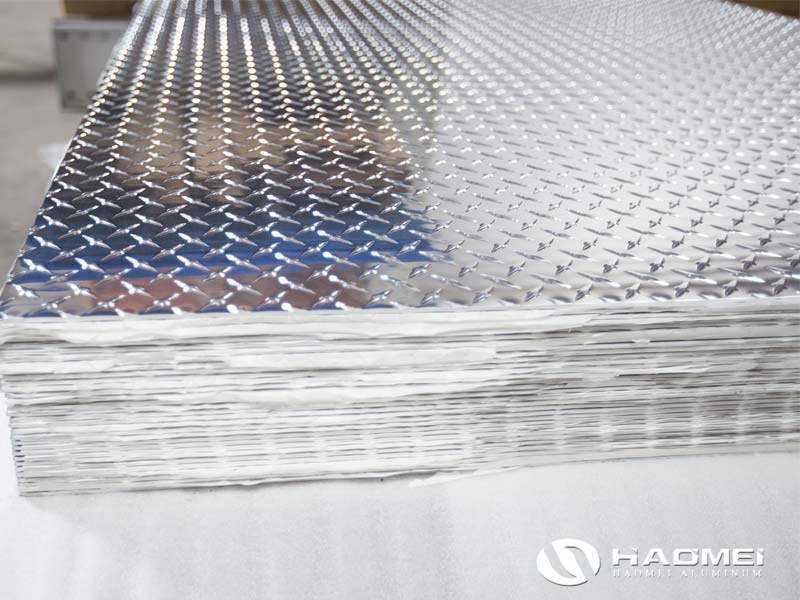

Reliable tread definition, controlled sheet flatness, traceable alloy documentation, and secure export packing are important considerations when sourcing at scale. A properly specified 4ft x 8ft diamond plate allows buyers to align safety, fabrication efficiency, appearance, and service life within one versatile aluminum sheet product.
