Shiny Aluminum Diamond Plate
Sep-16-2026
Shiny aluminum diamond plate is a durable, decorative, and slip-resistant aluminum sheet or coil embossed with a raised diamond tread pattern. Also called aluminum checker plate, tread plate, or bright diamond plate, it combines the naturally corrosion-resistant performance of aluminum with a highly visible surface that brings practical traction and a premium appearance to finished products.
In my experience working with aluminum sheet specifications, buyers often focus first on the shine. That is understandable, because a bright diamond pattern immediately improves the appearance of truck bodies, toolboxes, ramps, wall panels, and trailer interiors. However, the best material selection goes beyond visual impact. Alloy, temper, base thickness, tread height, flatness, and protective packaging all affect the finished result. A good shiny aluminum diamond plate should look impressive when installed while still performing reliably in demanding service conditions.
The distinctive pattern is created through an embossing process, where aluminum passes through patterned rolls that form raised diamonds on one side. The raised tread improves grip under footwear, tires, and equipment while helping hide minor scratches, dents, and scuff marks that would be obvious on smooth sheet.

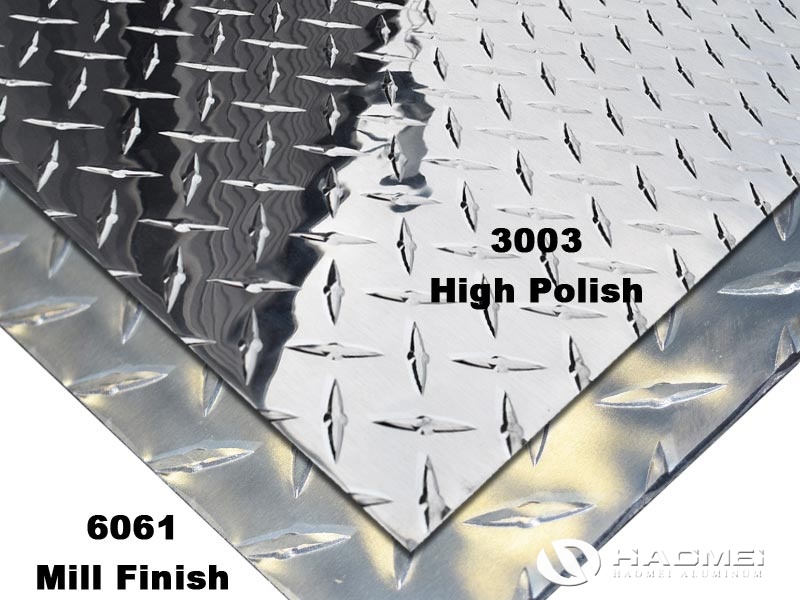

A shiny surface can refer to several finish levels:
Bright mill finish: A clean metallic appearance directly from rolling and embossing, commonly used for industrial and transportation applications.
Polished finish: A more reflective surface suitable for decorative trim, custom vehicles, retail displays, and architectural interiors.
Mirror-like bright finish: A premium visual option requiring careful handling and protective film to prevent scratches during fabrication.
Clear-coated or anodized finish: Added protection and appearance stability where fingerprint resistance, oxidation resistance, or easier cleaning is important.
When customers request a bright product, I always recommend confirming whether they need a standard bright mill finish or a true polished surface. These are different products with different processing routes, price levels, and scratch sensitivity.
Shiny aluminum diamond plate is most frequently produced in 1xxx, 3xxx, and 5xxx series aluminum. Each alloy family is suitable for different service environments and strength requirements.
| Alloy | Common Tempers | Key Characteristics | Typical Uses |
|---|---|---|---|
| 1050 / 1060 | H14, H24 | Excellent formability, bright appearance, economical | Decorative panels, interior trim, light-duty protection |
| 3003 | H22, H24 | Good corrosion resistance, moderate strength, easy fabrication | Trailer lining, flooring, toolboxes, walkways |
| 3105 | H14, H24 | Good formability and coating performance | Wall panels, commercial interiors, decorative sheet |
| 5052 | H32, H34 | Higher strength and excellent marine corrosion resistance | Vehicle floors, marine decks, ramps, heavy-duty covers |
For general-purpose shiny diamond plate, 3003 H22 or H24 remains one of the most balanced options. It provides better strength than pure aluminum while retaining excellent workability. It bends, cuts, punches, and rivets well, making it a dependable material for fabricators producing truck boxes, stair treads, protective panels, and utility trailers.
The temper matters. H22 is slightly softer than H24 and may be preferred where more forming is required. H24 provides a little more rigidity and is often selected for flat panels or floor applications. In practice, I have found that choosing the correct temper early prevents avoidable cracking or distortion during bending.
For applications exposed to saltwater, road salt, frequent impact, or heavier loading, 5052 H32 is usually the better choice. It has significantly higher strength than 3003 and provides outstanding resistance to marine and industrial atmospheres. Its price is higher, but that additional cost is often justified for boat decks, offshore service areas, truck steps, loading platforms, and high-traffic flooring.
For detailed product choices by thickness and surface pattern, our aluminum diamond plate range includes options designed for both decorative and demanding industrial service.
Shiny aluminum diamond plate offers several practical benefits that make it competitive against steel checker plate, stainless steel, and smooth aluminum sheet.
Aluminum weighs approximately one-third as much as steel. Reducing material weight is especially valuable in trailers, commercial vehicles, transport equipment, and mobile workstations. A lighter vehicle can improve payload capacity and fuel efficiency without sacrificing a durable protective surface.
Aluminum forms a stable oxide layer when exposed to air, helping protect the base metal from corrosion. For normal outdoor service, 3003 performs very well. In wet, coastal, or salt-exposed environments, 5052 is the safer long-term specification.
The raised diamond pattern improves traction compared with smooth sheet. This is important for stairs, ramps, walkways, truck beds, and equipment platforms. It is worth noting that no tread pattern makes a surface completely slip-proof in the presence of oil, ice, or standing water. Responsible design should still include drainage, cleaning procedures, and appropriate safety measures.
The shiny finish creates a clean, modern appearance while the pattern helps disguise routine wear. Regular washing with mild soap and water is generally enough for maintenance. Abrasive pads should be avoided on polished materials because they can dull the reflectivity and create visible directional scratches.
Diamond plate can be sheared, saw-cut, punched, drilled, bent, riveted, welded, or bonded. Fabricators should consider the raised pattern when measuring final dimensions and planning bends. On visible polished panels, protective PVC film and clean worktables are essential. Many surface complaints I have reviewed over the years were not mill defects; they were handling marks introduced during fabrication or transport.
Material thickness should be selected based on span, support spacing, expected load, and whether the plate is decorative or structural. Thin gauges are appropriate for wall cladding and trim, while thicker sheets are needed for flooring, ramps, and equipment protection.
Common thicknesses include 0.045 inch, 0.063 inch, 0.080 inch, 0.100 inch, 0.125 inch, 0.190 inch, and 0.250 inch. Standard sheet sizes such as 4 x 8 feet are widely used, though custom widths, lengths, and coil supply can reduce scrap for volume fabrication. Buyers comparing standard dimensions can review our 4x8 aluminum diamond plate options for common project requirements.
Remember that the quoted thickness may refer to the base metal, excluding the raised tread, or to the overall thickness including the pattern. This distinction matters for fitting panels into channels, calculating weight, and matching existing materials. I recommend placing this requirement clearly on the purchase order rather than assuming all suppliers use the same convention.

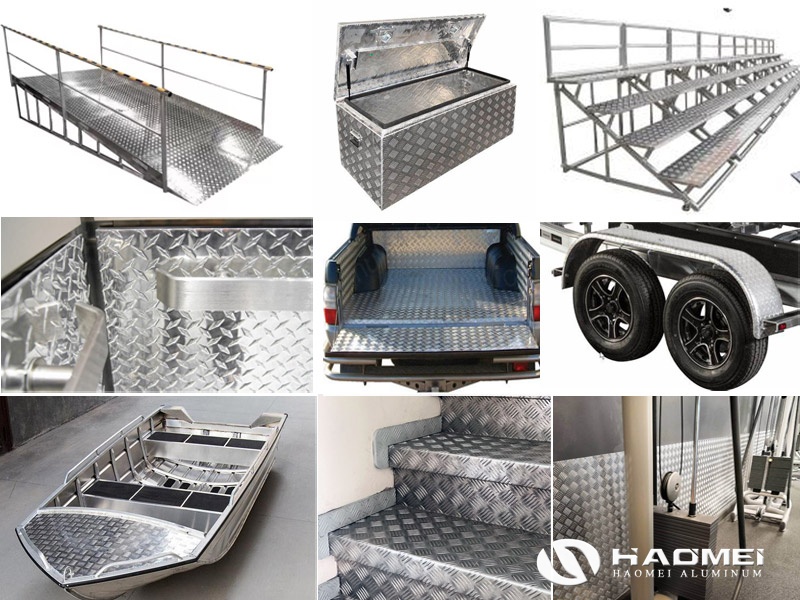

The combination of bright appearance, low weight, corrosion resistance, and traction supports a wide range of uses:
Truck bed liners, pickup accessories, running boards, and mudguard panels
Utility trailers, cargo trailers, horse trailers, and enclosed trailer interiors
Toolboxes, storage cabinets, workbenches, and equipment housings
Stair treads, ramps, walkways, factory platforms, and maintenance areas
Boat floors, docks, marine storage compartments, and coastal equipment
Architectural accents, retail displays, bar fronts, wall panels, and decorative interiors
Fire trucks, emergency vehicles, food-service vehicles, and mobile workshops

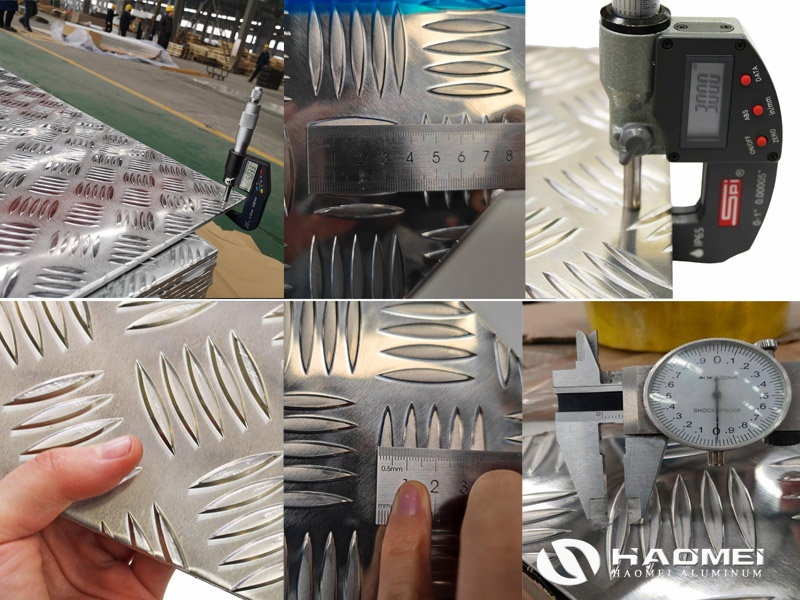

A professional shiny aluminum diamond plate order should specify alloy, temper, thickness basis, dimensions, pattern direction, finish requirement, and protective packaging. If appearance is critical, request confirmation of surface quality on the visible side, acceptable scratch standards, and PVC film requirements.
For premium decorative work, inspect samples under natural light rather than relying only on indoor photos. Bright aluminum reflects its environment, so a panel that looks flawless in a warehouse may reveal handling marks under direct sunlight. For functional flooring, prioritize alloy selection, base thickness, tread definition, and flatness over extreme mirror brightness.
Shiny aluminum diamond plate is more than an attractive metal sheet. When alloy and temper are matched to the application, it becomes a long-lasting solution that protects surfaces, improves traction, reduces weight, and presents a professional finish. Whether the requirement is a polished showcase panel or a rugged 5052 work platform, the most successful projects begin with a precise specification and a realistic understanding of service conditions.
