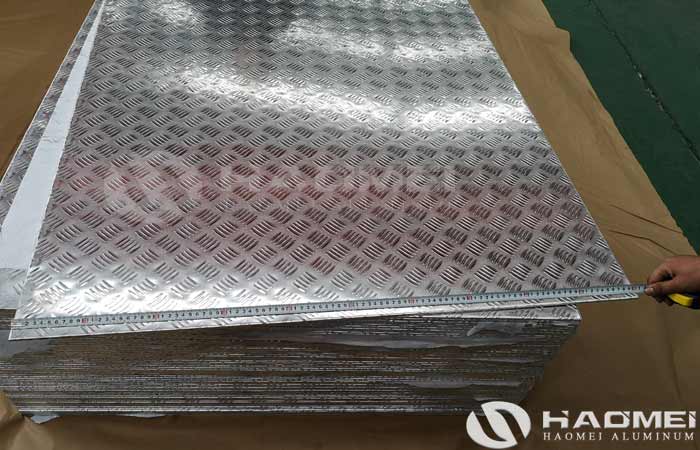

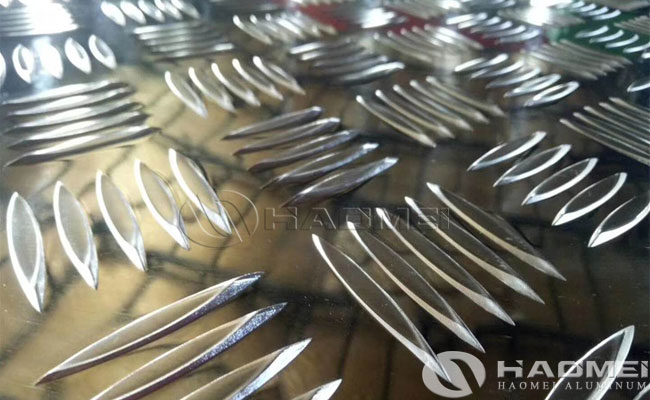

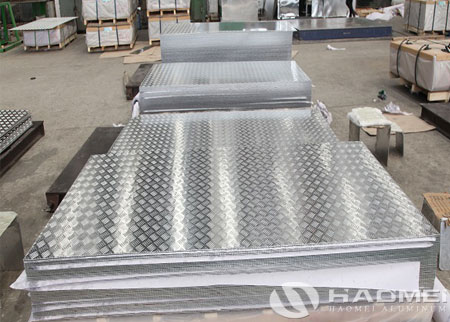

Vastrap plate, also known as checker plate and tread plate, is a type of aluminum plate with a regular raised pattern on one side, with the reverse side being featureless. Vastrap plate for sale is strong, lightweight, and provides protection and traction in high-traffic areas. Vatrap plate sheet is most commonly seen on the backs of trucks as storage units and tool boxes
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |

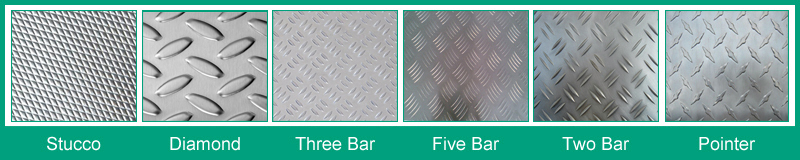

Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |

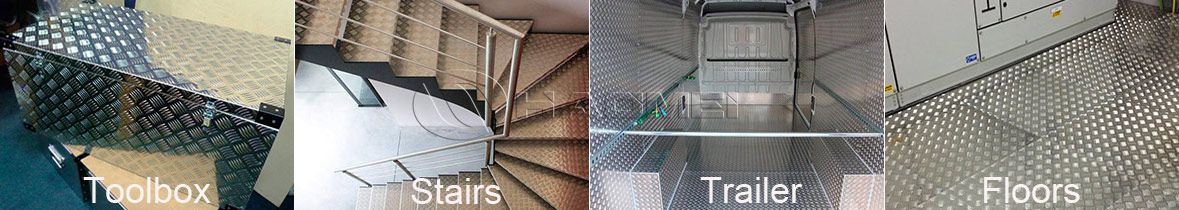

Corner guard for walls (interior decoration)
Door kicking plate
Stair treads
Can be used as decoration in modern cars–floors
Tread decking
Floors for elevators
Commercial use–shopping centers with high foot fall
Anti-skid. It is benefit from the raised surface of the checker plate.
Anti-corrosion and rust. The aluminum and galvanized material can help the checker plate from the corrosive and dusty environments.
Anti-high temperature and alkaline.
Decorative. The bright surface, especially the polished aluminum checker plate has outstanding decorative affection.
1) very high quality with the third party inspection: SGS, BV, CE,COC, AL and other
2) good price with flexible payment:TT, L/C etc.
3) short lead time and on time delivery
4) free samples and freight charges in your side
5) professional service
6) quality guarantee after receiving the goods: money return for the bad goods or deliver new goods if any problems happen.
