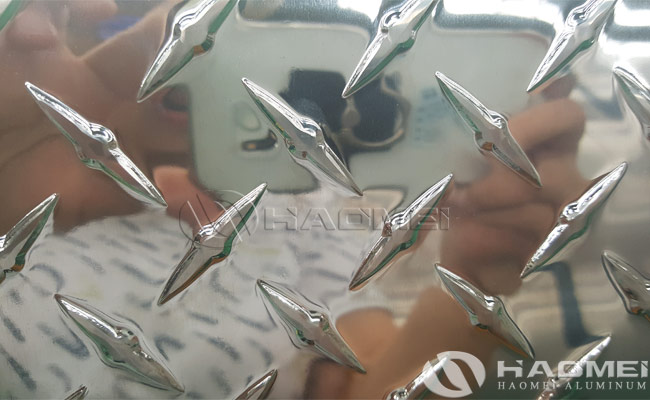

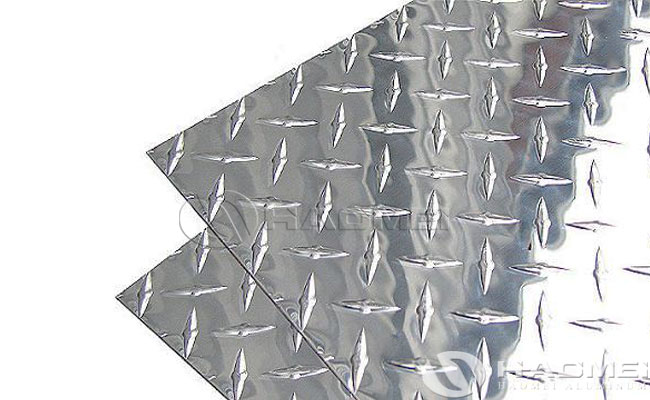

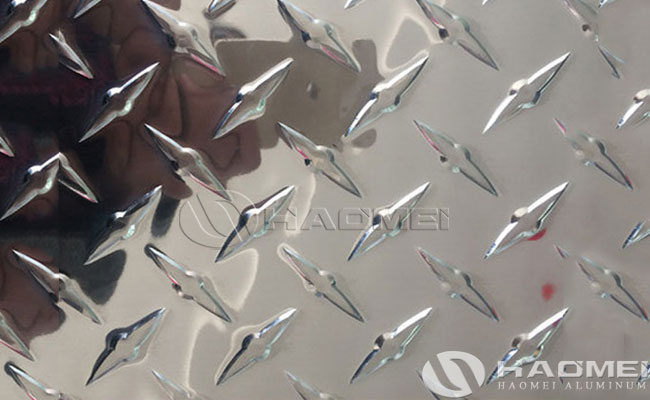

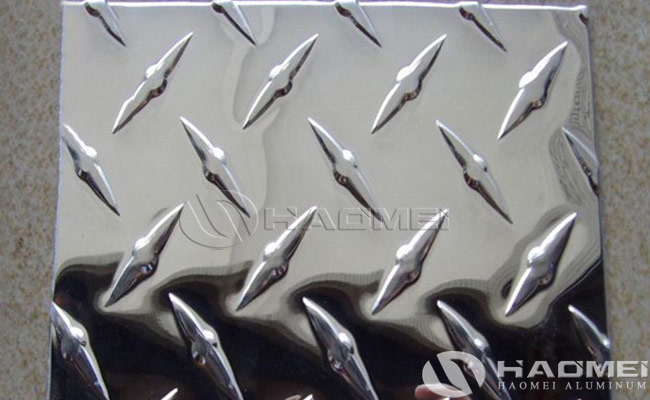

The textured diamond plate surface of tread brite diamond plate delivers anti-slip flooring surfaces, increased rigidity in the material as well as concealing dents and fingerprints. Alumimum tread brite diamond plate pattern is slip-resistant and cosmetically appealing for hundreds of decorative applications.
Aluminum tread brite diamond sheets are an increasingly popular architectural design choice particularly for specialty decorative metal work in residential, commercial and industrial applications.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |
Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
1, Accurate size, good anti-slip effect,wide range of applications.
2, Strong plasticity, easy forming and excellent processing performance.
3, Tread brite diamond plate can form a dense and strong oxide film on aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance.
4, Good elongation and tensile strength, fully able to meet the normal processing requirements (stamping, stretching), high formability.
5, The surface quality of aluminum tread brite diamond plate is good, no oil spots, waves, scratches, roller marks, neat trimming, no burrs.
