Tool Box Diamond/Checker Plate

Series1050, 1060, 1100, 3003, 5052, 5083, 6061
TemperH12, H14, H16, H18, H22, H24, H111, T6
ApplicationTool boxes
send emailInquiry

Tool Box Diamond/Checker Plate

Quality tool box diamond plate and tool box checker plate are used for high strength and light weight, as well as the fact that it doesn't rust.

Aluminum diamond plate for tool box provides a convenient, sturdy storage box and this is enhanced by the design for rigidity and with fully welded seams. Haomei Aluminum supply black diamond plate for processing black tool box and silver tool box.

Toolboxes are made from aluminium checker plate are heavy duty, secure and that would stand the test of time, without the hefty price tag.

The Specification of Tool Box Diamond Plate:


1050, 1060, 1100, 3003,5052, 5083, 5086, 6061 etc.


O, H12, H14, H16, H18, H24, H24, H26, H32, H34


ASTM-B209. EN573-1, GB/T3880.1-2006


0.8 - 12mm




max 6000mm for sheet or as required for coil


big 5 bar / small 5 bar / 3 bar / diamond / pointer

Surface treatment

polished, mill finished, power coated, sand blast, anodized, brushed.

Surface Protection

Oleo phobic coating, protective film, paint coating.


Export wooden pallets. The bundle weight not exceed 2MT. Loading:by 1x20GP.

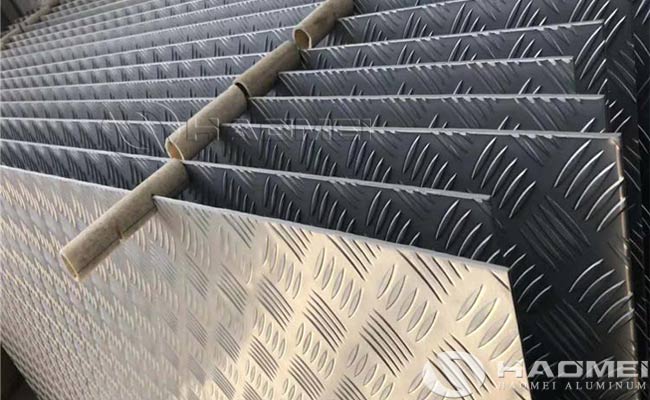

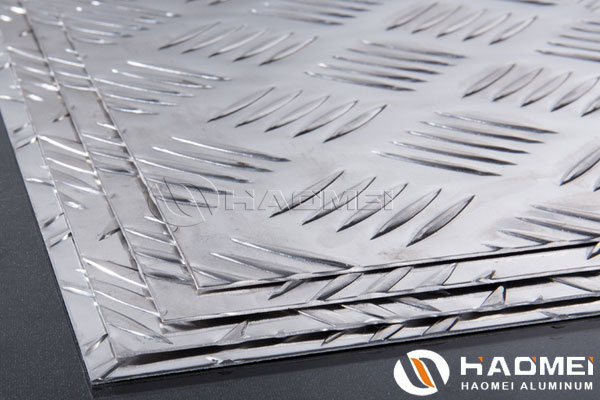

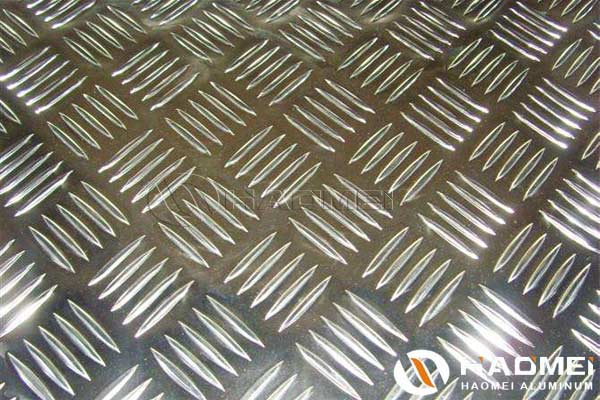

The Patterns of Tool Box Checker Plate:

The Advantages of Aluminum Diamond Plate For Tool Box:

Anti-corrosion and rust. The aluminum material can help the checker plate from the corrosive and dusty environments.

Anti-high temperature and alkaline. This is the main feature of the aluminum checker plate.

Decorative. The bright surface, especially the polished aluminum checker plate has outstanding decorative affection.

Self-cleaning and minimized the maintenance.

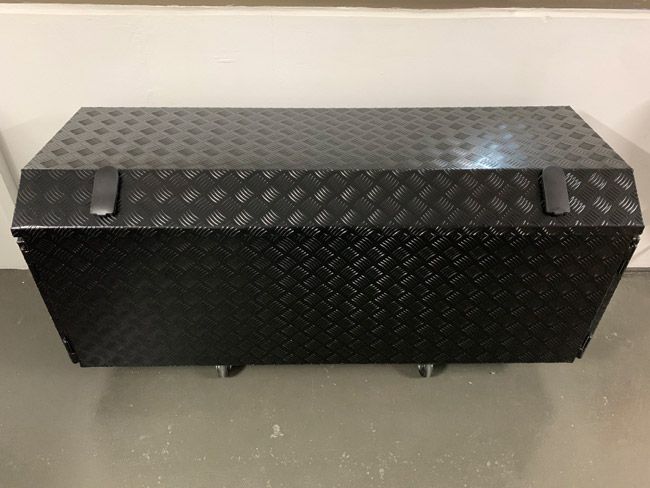

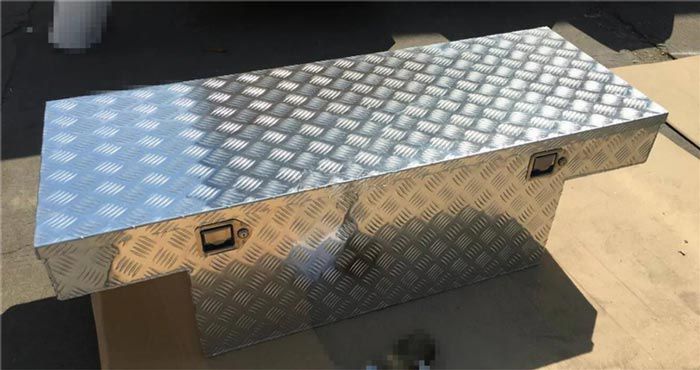

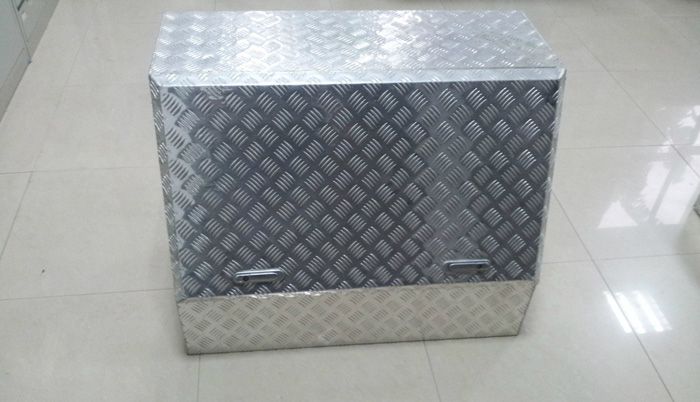

The Application of Aluminum Checker Plate For Tool Box:

tool box checker plate tool box diamond plate

aluminum diamond plate for tool box aluminium checker plate for tool box
