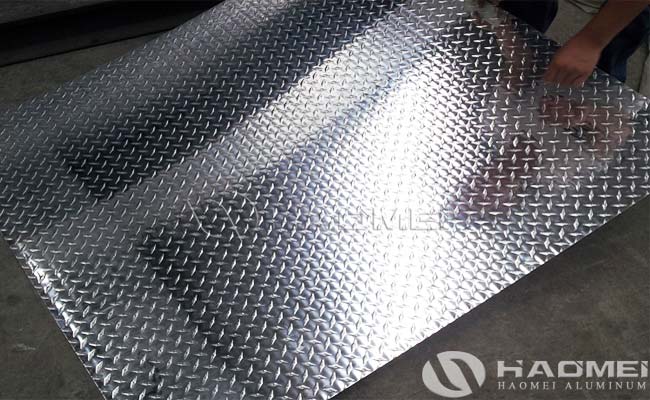

Thin Aluminum Diamond Plate

Thin Aluminum Diamond Plate: Series1050, 1060, 1100, 3003, 5052, 5083, 6061; TemperH12, H14, H16, H18, H22, H24, H111, T6; Thickness0.8-10.0 mm; Width20-1950 mm; ApplicationDecoration,Tool box, Floor, Anti slip, Truck body, Stairs; send email Inquiry

DESCRIPTION

The non-slip safety feature of thin diamond plate makes it ideal for use on stairs, catwalks, walkways, loading lamps and trailers. The excellent hand and foot grip offered by thin aluminum diamond plate makes it ideal for use in the interior of ambulances and foot plates on fire trucks. The thin diamond plate metal that we offer comes come in a range of grades, finishes, thicknesses and sheet sizes.

Specification of Thin Diamond Plate:

Alloy	1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082
Temper	H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
Surface	Bright Finish, Mill Finish
Bar Difference	Five Bar, Stucco, Compass, Diamond.
Available Dimension
	Mill Finish Surface	Bright Finish Surface
Thickness	1.0---6.5mm	1.2---6.5mm
Pattern Height	Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm
	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm
	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm
Width	Maximum 1500mm	Maximum 1650mm
Length	Maximum 6000mm	Maximum 6000mm
Paper Interleaves	On Request For Selected	On Request For Selected
Normal Size	1200x2400mm, 1219x2438mm, 1219x3048mm	1200x2400mm, 1219x2438mm, 1219x3048mm

Advantages of Thin Aluminum Diamond Plate:

Anti-skid. It is benefit from the raised surface of the checker plate.

Anti-corrosion and rust. The aluminum and galvanized material can help the checker plate from the corrosive and dusty environments.

Anti-high temperature and alkaline.

Decorative. The bright surface, especially the polished aluminum checker plate has outstanding decorative affection.

Easy to install and economical. They are one-piece structure and lightweight, we can install them with few people and less cost.

Application of Thin Diamond Plate Metal:

1. Floor Covering for hygiene and slip resistance

2. Door Protection as kick plates or as a full door cladding

3. Wall and Column Protection to prevent impact damage where hand trucks, trolleys, sack carts etc are operated.

4. Vehicle body, Vans, Trailer tailgate ramps and flooring.

5. Access Ramp covering for wheelchairs

6. Truck Bed, Tool Boxes

7. Stair Treads, Step Ladders, Walkways

Patterns of Thin Diamond Plate Sheets:
