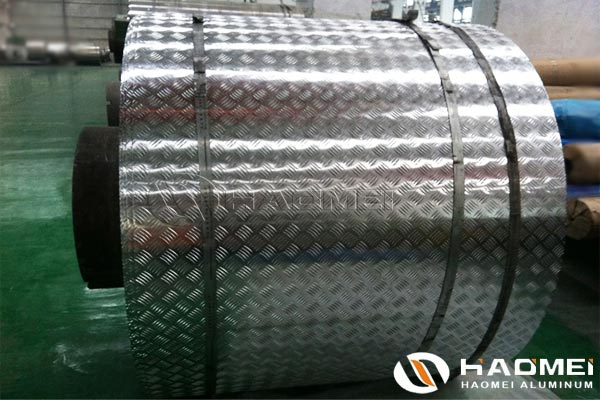

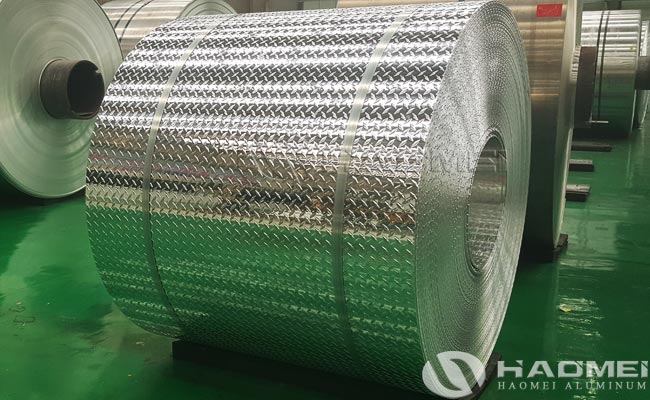

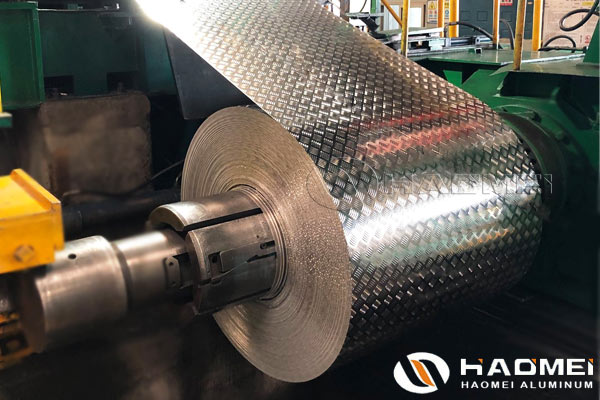

The thin checker plate can be processed as checker plate roll, alloys are 1060, 3003, thickness 0.1--3mm, common width 1000---1500mm.
Haomei Aluminum produce diamond, 1 bar, two bars, three bars, and 5 bars thin aluminium checker plate, etc. Aluminium checker plate roll are widely used in non-slip floors for vehicles, ships, buildings and other places, as well as in decoration and other fields.
Alloy | 1050, 1060, 1100, 3003, 3004, 3105, 5052,5083, 5086, 5754, 6061 |
Temper | O, H12, H14, H16, H18, H22, H24, H111, H114, T6 |
Thickness | 0.8-10.0 mm |
Width | 20-1950 mm |
Length | 500-6000 mm or in Coil |
Surface | Bright finish, Mill finish, Mirror Finish, high polished |

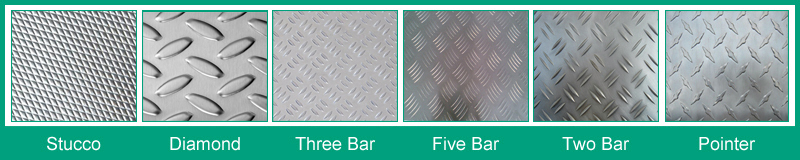

Pattern | 5 Bars, 3 Bars, 2 Bars, 1 Bar, Diamond pattern |
Pattern height | 0.7-2.5mm |
Pattern Length | 35mm-50mm |
MOQ | 3 MT, or depend on the specification |
Production Line | DC and CC |
Application | Tool box, Floor, Anti slip usage, Truck body, Stair treads, Vehicle steps, Building, Construction, Decoration, Mechanical etc. |
Packaging | Packed and labeled according to customer’s requests. Avoid damage during storage or transportation. Clear labels are tagged on the outside of the packages for identify product ID and quality information. |
Kindly attention | Custom made, if any questions, pls do feel free to contact us. |
· Slip resistant surface
· Extremely durable—requires no maintenance
· Weather & corrosion resistant
· Bright reflective surface
· Unique decorative appearance

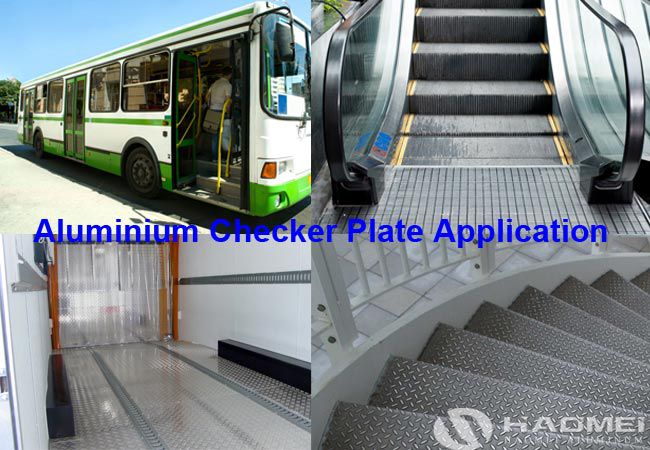

●Loading Ramps
●Stair Tread
●Flooring
●Dock Plate
●Decorative purposes
●Fire Trucks
●Ambulances
●Recreational Vehicles
