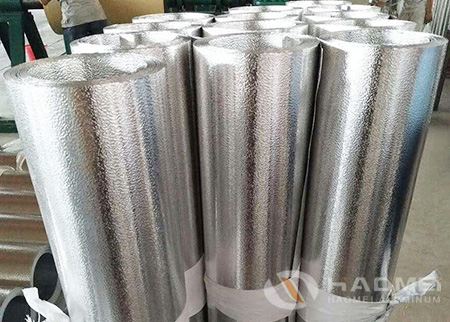

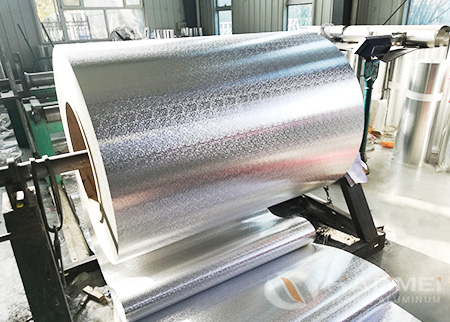

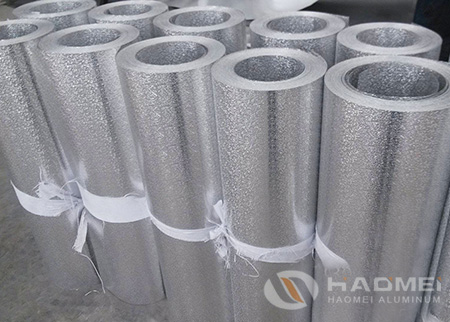

Stucco embossed aluminium cladding for pipe insulation have good thermal conductivity, heat dissipation due to the special nature of the pattern. As professional stucco embossed aluminum cladding supplier, Haomei Aluminum offer reliable quality, reasonable prices and prompt delivery. Our stucco embossed aluminum cladding provides a white primer or silver (mill finish) surface that is easy to clean, either side is use-able, and the pattern looks the same. Stucco embossed aluminum cladding is a great low maintenance wainscoting.
Item Shape | stucco embossed aluminum cladding |
Grade Rating | A1060, A3003, A5005 etc |
Item Temper | H12, H14, H16, H18, H22, H24 |
Thickness(Base material | 0.25~2.0 |
Width | ≤1500 |
Embossing depth | 0.08~0.25 |
Diagonal | +/-1.5 |
Common specifications are in stock. Special sizes can be customized according to clients' requests. Please contact us if you have any questions, we will be glad to serve you!
1, Stucco pattern on aluminum cladding can reduce sunshine reflect and hide small scratches caused by physical damage during or after installation.
2, Strong: the tensile strength can be 85-120Mpa, and can satisfy most of insulation jacketing needed.
3, Corrosion resistant: they do not rust.
4, Light weight: Aluminum is about 1/3 weight of iron or steel, making it easier to handle and less expensive to ship.
5, Easy to fabricate & assemble.
Aluminum Jacketing is recommended for HVAC, Insulated Piping, Tanks & vessels less than 8 feet in diameter.
Deep corrugated sheets are recommended for diameters greater than 8 feet.
Chemical Plants & Refineries: Distillation columns, tank farms, fractionation units, cokers and ethylene production units.
Paper Mills: Chemical storage tanks, breechings and ducts.
Steel Mills: Pickle acid tanks, oxygen production units, fuel oil and tar storage tanks.
Miscellaneous: Power station, Food processing plants, LPG storage units, LNG storage units, sewage and waste water treatment plants.
Thickness(inch) | Thickness(mm) | Width(mm) | Length(m) | Suggested Application |
0.016 | 0.4 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | OD below 36”(914mm) insulated lines |
0.020 | 0.5 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | OD below 36”(914mm) insulated lines |
0.024 | 0.6 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | OD 36”-8′ (914mm-2.19m) insulated lines&equipment |
0.032 | 0.8 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | special applications where extra thickness and protection is required, such as fabricated tank head covers and other special fabrications |
0.040 | 1 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | special applications where heavy mechanical is required |
0.050 | 1.2 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | flat ducts or precipitators. Also recommended for areas subject to high wind conditions |
Alloy | Si | Fe | Cu | Mn | Zn | Mg | Ti | Cr | Other Elements | AL | |
Each | Total | ||||||||||
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.05 | 0.03 | 0.03 | – | 0.03 | 99.6min | |
1100 | Si+Fe=0.95 | 0.05-0.20 | 0.05 | 0.10 | – | – | – | 0.05 | 0.15 | 99.0min | |
3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.50 | 0.10 | – | – | – | 0.05 | 0.15 | reminder |
3105 | 0.6 | 0.7 | 0.30 | 0.30-0.80 | 0.40 | 0.20-0.80 | 0.10 | 0.20 | 0.05 | 0.15 | reminder |
5005 | 0.3 | 0.7 | 0.20 | 0.20 | 0.25 | 0.50-1.10 | – | – | 0.05 | 0.15 | reminder |
