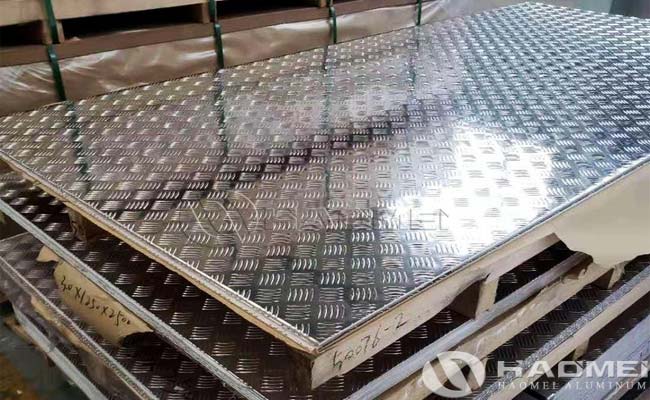

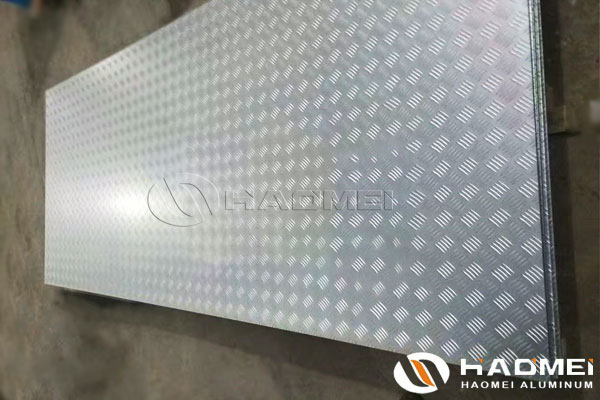

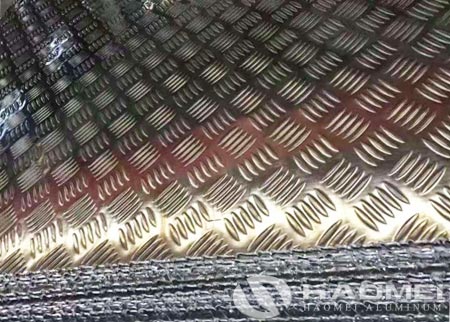

The ribbed aluminum sheet is formed by embossing the ordinary aluminum sheet. The ribbed aluminium sheet commonly has one rib, two ribs, three ribs, and five ribs. The 5 bar ribbed aluminium plate is divided into five large ribs and five small ribs. This kind of ribbed aluminum plate is used as anti-skid, which has good anti-skid effect and is slightly cheaper.
Item | Ribbed aluminium plate |
Grade | 1050, 1060, 1100, 3003,5052, 5083, 5086, 6061 etc. |
Temper | O, H12, H14, H16, H18, H24, H24, H26, H32, H34 |
Standard | ASTM-B209. EN573-1, GB/T3880.1-2006 |
Thickness | 0.8 - 12mm |
Width | 400-1220mm |
Length | max 6000mm for sheet or as required for coil |
Pattern | big 5 bar / small 5 bar / 3 bar / diamond / pointer |
Surface treatment | polished, mill finished, power coated, sand blast, anodized, brushed. |
Surface Protection | Oleo phobic coating, protective film, paint coating. |
Packing | Export wooden pallets. The bundle weight not exceed 2MT. Loading:by 1x20GP. |
Quality | Totally free from defects like white rust, oil patches, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
MOQ | 1-2 Metric ton |
Free sample | Available |
Delivery time | 20-30 days after deposit |
Anti-skid. It is benefit from the raised surface of the checker plate.
Anti-corrosion and rust. The aluminum material can help the aluminum checker plate from the corrosive and dusty environments.
Anti-high temperature and alkaline.
Decorative. The bright surface, especially the polished ribbed aluminum sheet has outstanding decorative affection.
1. Reasonable production arrangement to make delivery very fast;
2. We are able to provide leading tolerances, metallurgical assistance, quick and reliable delivery, samples for new ribbed aluminum sheet, etc.
3. We have the strong capability to meet your special requirement.
4. To guarantee the quality of the products we can meet most of the standards all over the world such as ASTM standard.
