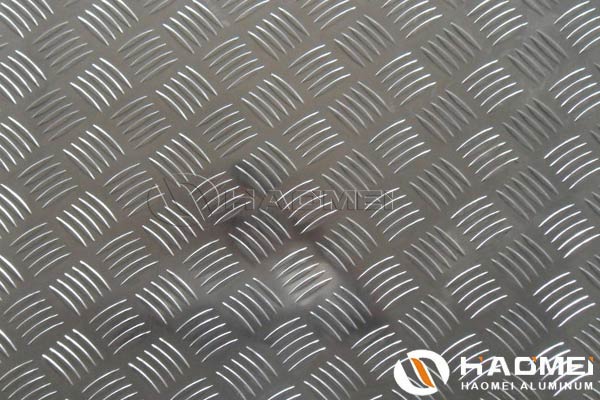

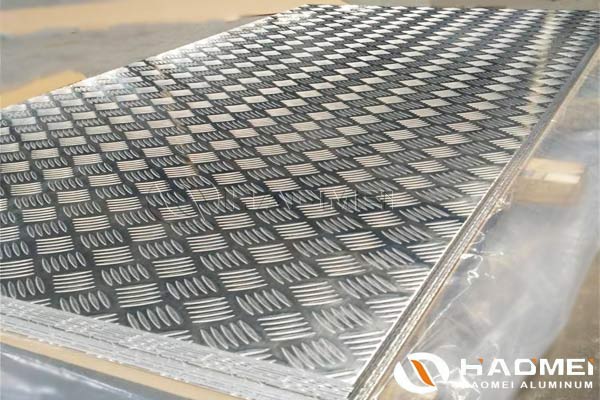

Five bar aluminum tread plate have good anti-slip effect, so it is mainly used in anti-skid on the ground or working platform. 5 bar tread plate aluminum plate is defined by its unique pattern, with small, individual blocks of five parallel bars oriented perpendicularly to their neighboring blocks.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |

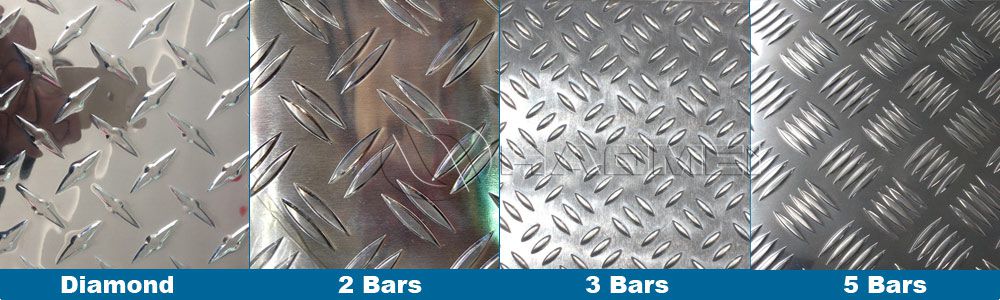

Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
1. Accurate size, good anti-slip effect,wide range of applications
2. Strong plasticity, easy forming and excellent processing performance.
3. Five bar aluminum tread plate can form a dense and strong oxide film on aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance.
4. Good elongation and tensile strength, fully able to meet the normal processing requirements (stamping, stretching), high formability.
5. The surface quality of aluminum five bar tread plate is good, no oil spots, waves, scratches, roller marks, neat trimming, no burrs.

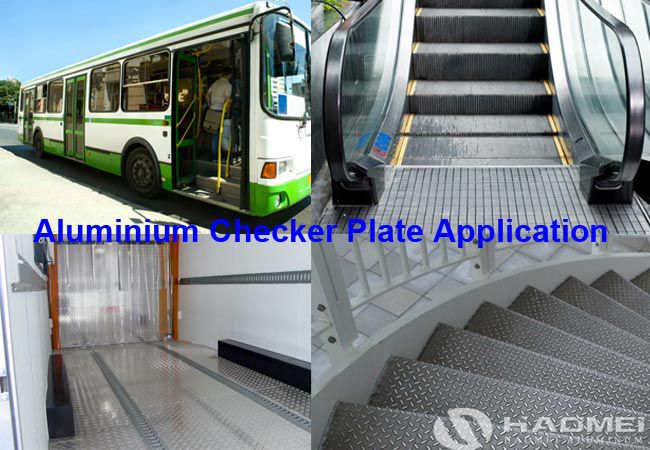

As a result of it good property in anti-corrosion, this five bar aluminum tread plate is commonly used in moist environments like the bottom of cars, slippery floors, equipment floor, stairs, platform, bus and auto floor.
