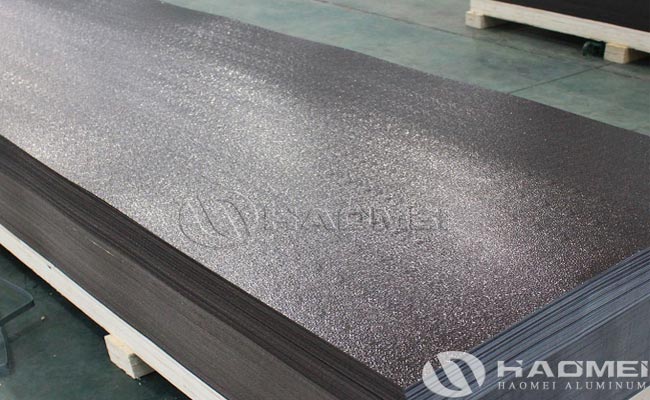

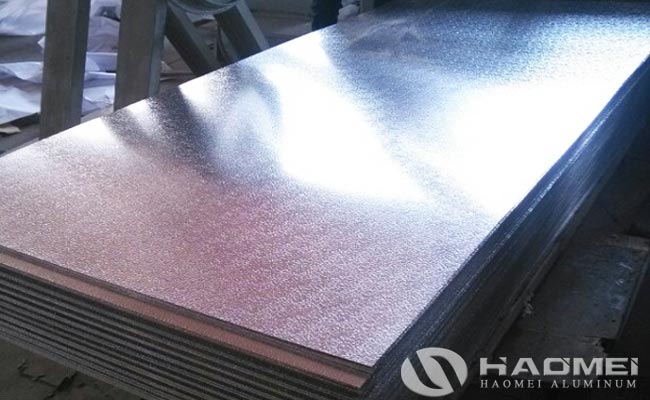

Embossed aluminum sheet metal are usually used in refrigerators, air conditioners, freezer equipment and pipe insulation. The aluminum embossed metal sheet products have good thermal conductivity, heat dissipation due to the special nature of the pattern.
Alloy | 1050, 1060, 1070, 1100, 3003, 5052 |
Temper | O, H12, H22, H14, H24, H16, H18, H26 |
Thickness | 0.25-2.0mm |
Width | 20-2200m |
Length | 500-8000mm |
Coil Specifications | I.D.: 405mm, 505mm O.D.: 800mm – 1270mm |

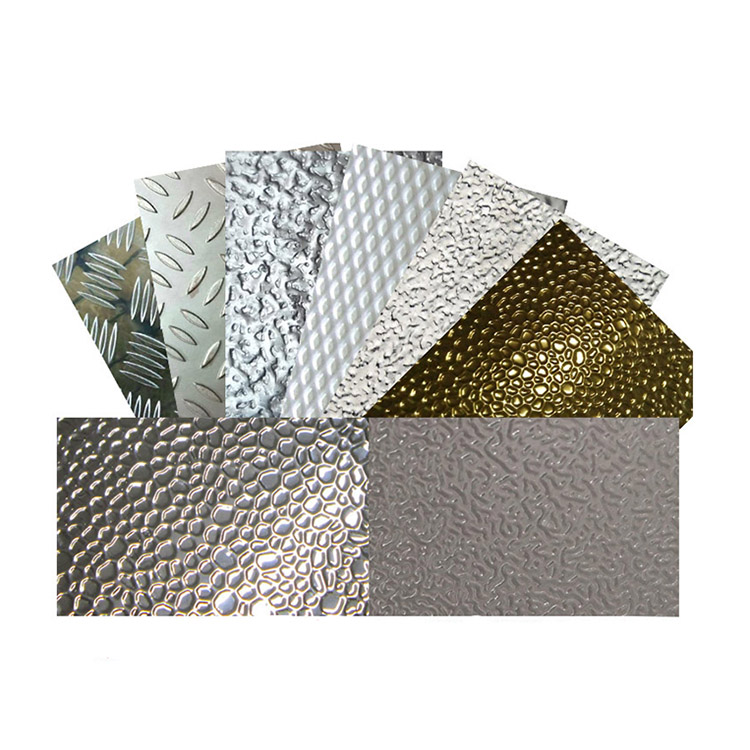

Surface | Orange peel, tear, hammer, pebble, lentils, color coated, mirror finish, hemisphere, rhombus, pearl, worm pattern |
Packing Detail | Wooden pallet either eye to wall or eye to sky |
1) High impact resistance
2) Easy for processing
3) High gloss
4) Variety colors
5) Good performance
6) Appearance Clear Texture, Smooth edges no burrs.
It is widely used in refrigerator, freezer, cold storage, decoration, pipe insulation, roofing, ceiling, wall decoration, caps, household appliances and other fields. Embossed aluminium sheet metal mechanical performance in room temperature should accord with GB/T8544-1997.
