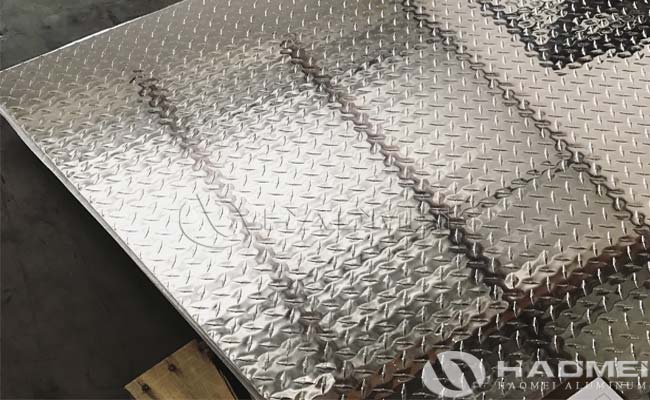

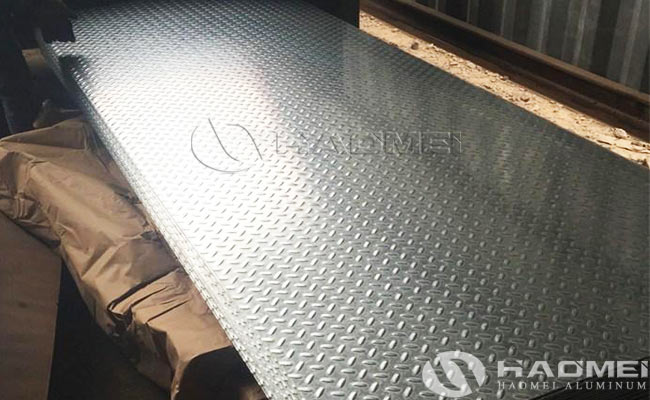

Diamond checker plate can be used for a wide range of construction and structural purposes. If you are looking for diamond checker plate aluminum, please contact Haomei Aluminum, its lightweight, durable, low maintenance quality, non-slip element allows it to be widely used as vehicle flooring and industry flooring due to its practical and decorative function.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |
Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||

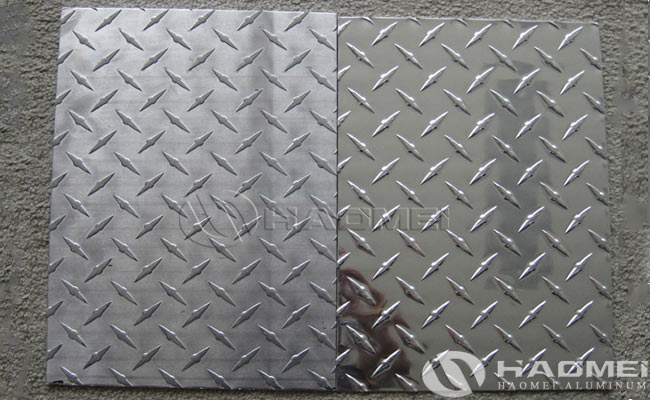

Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
· Slip resistant surface
· Extremely durable—requires no maintenance
· Weather & corrosion resistant
· Bright reflective surface
· Unique decorative appearance
Ramps, Toolboxes, Decorative flooring and walls, vehicle running bars and kick plates, Trailers, Dock surfaces, Stairways.
For vehicle applications like steps and risers, battery and fuel tank covers, bumpers and kick plates.
For building applications like door kick plates, hatch covers, working platforms, steps and ramps.
