The aluminium checker plate cost is cheap. Although it is not very simple to make regular patterns on aluminum plates. This means that there is still a process. The aluminium checker plate for sale not only increases the investment in machinery and equipment, but also consumes more manpower and costs. However, if you find a suitable aluminum checker plate manufacturer, because it is a direct sales model, cost of checker plate for sale is relatively cheap.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |

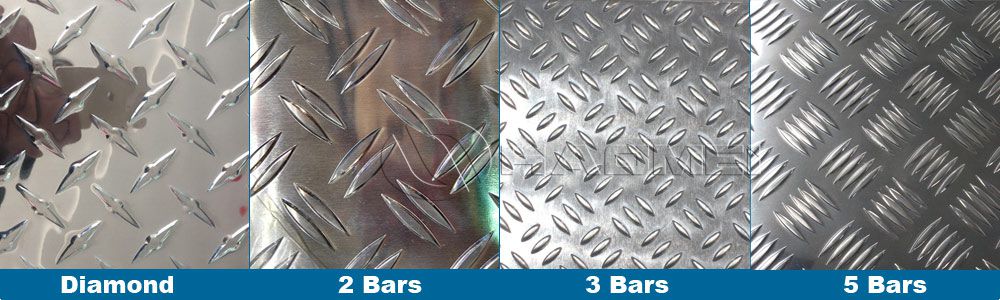

Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
1, Accurate size, good anti-slip effect,wide range of applications.
2, Strong plasticity, easy forming and excellent processing performance.
3, Cheap checker plate can form a dense and strong oxide film on aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance.
4, Good elongation and tensile strength, fully able to meet the normal processing requirements (stamping, stretching), high formability.
5, The surface quality of cheap aluminium checker plate is good, no oil spots, waves, scratches, roller marks, neat trimming, no burrs.

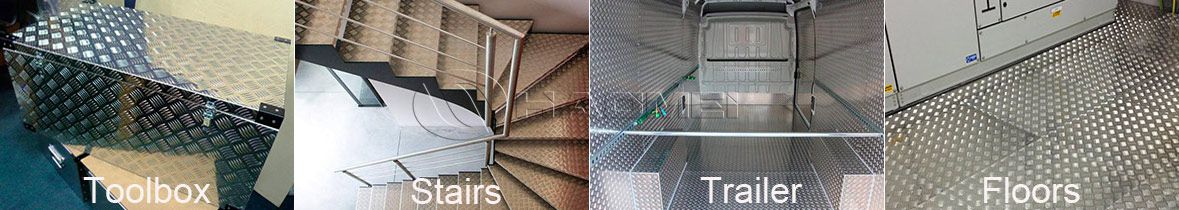

·Loading Ramps
·Stair Tread
·Flooring
·Dock Plate
·Dock Board
·Decorative purposes
·Fire Trucks
·Ambulances
·Recreational Vehicles
1. Reasonable production arrangement to make delivery very fast;
2. We are able to provide leading tolerances, metallurgical assistance, quick and reliable delivery, samples for new aluminum tread plate, etc.
3. We have the strong capability to meet your special requirement.
4. To guarantee the quality of the products we can meet most of the standards all over the world such as ASTM standard.
