Aluminum Diamond Plate 4x10, 5x10, 48x48, 24x48, 4x4

Aluminum Diamond Plate 4x10, 5x10, 48x48: Series1050, 1060, 1100, 3003, 5052, 5083, 6061; TemperH12, H14, H16, H18, H22, H24, H111, T6; Thickness0.8-10.0 mm; Width20-1950 mm; ApplicationDecoration,Tool box, Floor, Anti slip, Truck body, Stairs; send email Inquiry

DESCRIPTION

Aluminum Diamond Plate 4x10, 5x10, 48x48

Due to the durability, 4x10 aluminum diamond plate and other size like 48 x 48, 5x10, 24 x 48 are used in many different areas because they do not lose their shape or look, even after a long time. Whether industrial floors, airplanes, ships and vehicles, or stairs indoors or outdoors - aluminum diamond plate are a popular material which is appreciated for its excellent properties, the high resilience and the low weight.

Specification of 4x10 Aluminum Diamond Plate:

Alloy	1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082
Temper	H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
Surface	Bright Finish, Mill Finish
Bar Difference	Five Bar, Stucco, Compass, Diamond.
Available Dimension
	Mill Finish Surface	Bright Finish Surface
Thickness	1.0---6.5mm	1.2---6.5mm
Pattern Height	Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm
	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm
	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm
Width	Maximum 1500mm	Maximum 1650mm
Length	Maximum 6000mm	Maximum 6000mm
Paper Interleaves	On Request For Selected	On Request For Selected
Normal Size	1200x2400mm, 1219x2438mm, 1219x3048mm	1200x2400mm, 1219x2438mm, 1219x3048mm

Advantages of 48 x 48 Diamond Plate:

*Anti-skid. It is benefit from the raised surface of the checker plate.

*Anti-corrosion and rust. The aluminum and galvanized material can help the checker plate from the corrosive and dusty environments.

*Anti-high temperature and alkaline.

*Decorative. The bright surface, especially the polished aluminum checker plate has outstanding decorative affection.

*Easy to install and economical. They are one-piece structure and lightweight, we can install them with few people and less cost.

Application of Aluminum Diamond Plate Sheet 4 x 10:

u Corner guard for walls (interior decoration)

u Door kicking plate

u Stair treads

u Can be used as decoration in modern cars–floors

u Tread decking

u Floors for elevators

u Commercial use–shopping centers with high foot fall

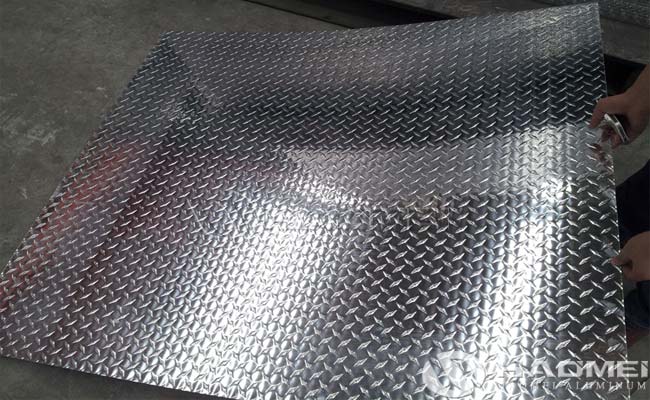

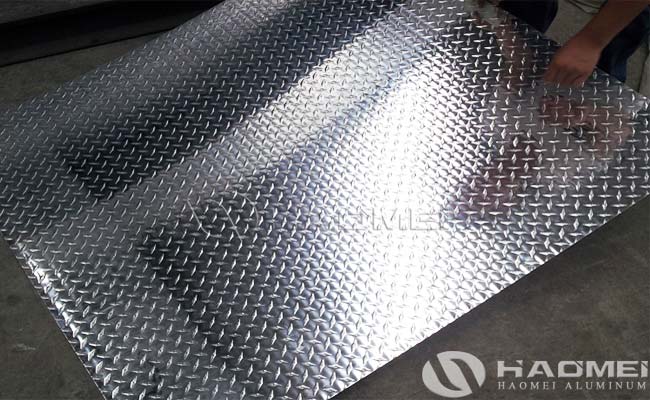

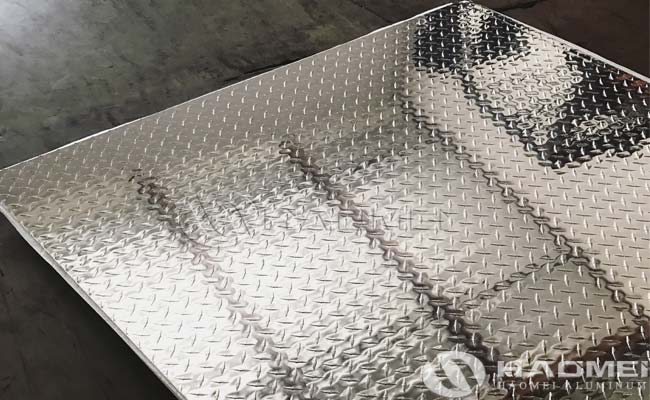

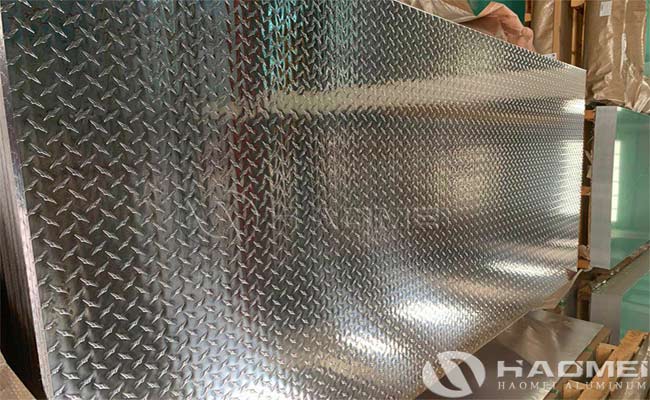

Patterns of 5x10 Aluminum Diamond Plate:
