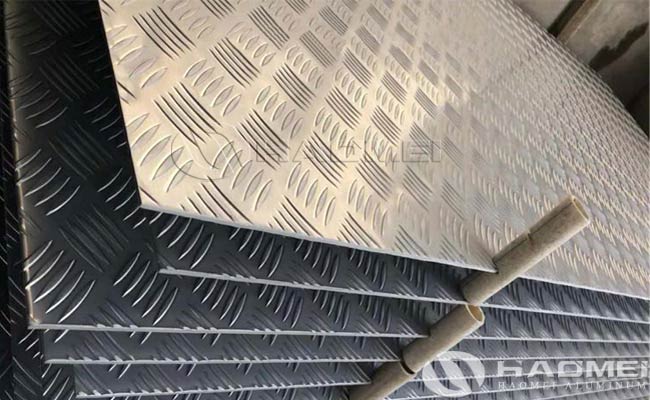

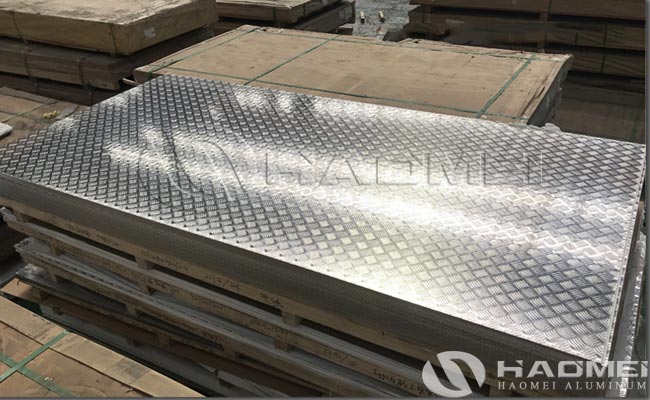

Metal chequer plate is is made from aluminum or steel, while aluminium metal chequer plate is the most popular checker plate in the daily life. Metal chequered plate is a type of aluminum rolled sheet, it has a raised diamond or linear pattern on one side and is smooth on the other side, it can resist the corrosion and rust. It can remain high value after it being replaced.
Alloy No. | Thickness | Width | Length | Temper |
A1050, A1060, A1070, A1100 | 1.0-10 | 20-2200 | 20-8000 | H12,H22,H14,H16,H18, H24,H26,etc |
3A21, A3003, A3105, A3004 | 1.0-10 | 20-2200 | 20-8000 | H14,H18,H24,etc |
A5052 , A5005, A5083, A5754 | 1.0-10 | 20-2200 | 20-8000 | H18,H24,H32,H34,H111,H112 ,etc |
A6061, A6082, A6063 | 1.0-10 | 20-2200 | 20-8000 | T4,T6,,etc |
A8011 | 1.0-10 | 20-2200 | 20-8000 | H12,H22,H14,H16,H18,H24,H26, etc |
Standards:ASTM-B209. EN573-1, GB/T3880.1-2006 | ||||
MOQ | 5 tons | |||
Kind attention : Specifications can be customized as the customer's requirements. | ||||
Anti-skid. It is benefit from the raised surface of the checker plate.
Anti-corrosion and rust. The aluminum and galvanized material can help the checker plate from the corrosive and dusty environments.
Anti-high temperature and alkaline.
Decorative. The bright surface, especially the polished aluminum checker plate has outstanding decorative affection.
Easy to install and economical. They are one-piece structure and lightweight, we can install them with few people and less cost.
Floor Covering for hygiene and slip resistance.
Wall and column protection to prevent impact damage where hand trucks, trolleys, sack carts are operated.
Door protection as kick plates or as a full door cladding.
Commercial vehicle and vans.
Access ramp covering for wheelchairs.
Livestock trailer tailgate ramps and flooring.
Land rover and other off road vehicle body protection, bonnets, wings, sills, corners, floors, bumpers, mud flaps, door plates, side plates, load area plates.
Truck Bed Tool Boxes.
Stair treads, step ladders, walkways.
Shop front facial for vandal protection.
