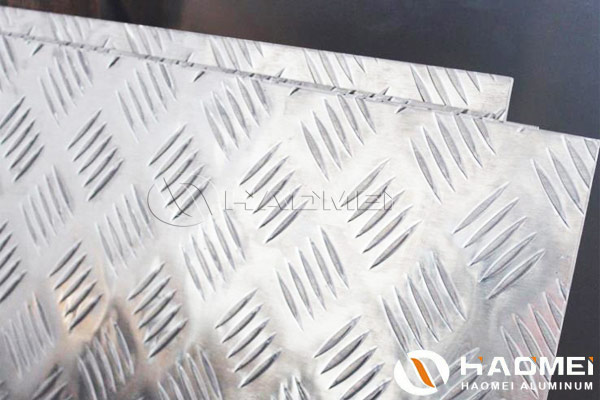

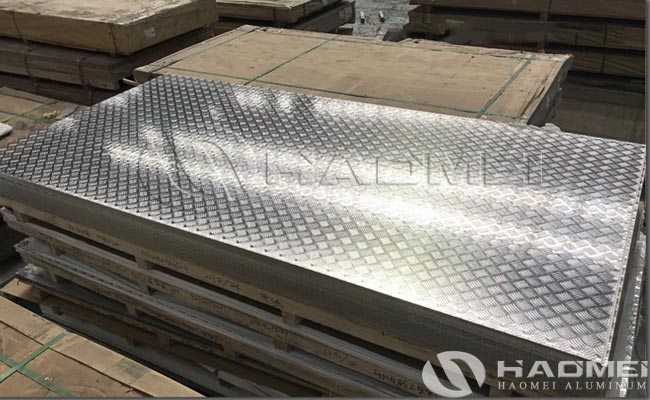

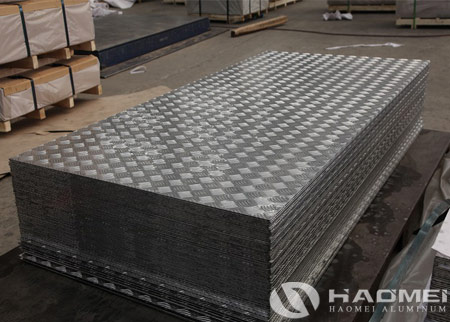

Aluminum alloy chequer plate is also called aluminum chequered or aluminium chequer tread plate. It is made from aluminum sheet. One side of the surface is embossed with diamond plate pattern. The different pattern can fit different environments and various usage.
Alloy | 1050, 1060, 1100, 3003, 3004, 3105, 5052,5083, 5086, 5754, 6061 |
Temper | O, H12, H14, H16, H18, H22, H24, H111, H114, T6 |
Thickness | 0.8-10.0 mm |
Width | 20-1950 mm |
Length | 500-6000 mm or in Coil |
Surface | Bright finish, Mill finish, Mirror Finish, high polished |
Pattern | 5 Bars, 3 Bars, 2 Bars, 1 Bar, Diamond pattern |
Pattern height | 0.7-2.5mm |
Pattern Length | 35mm-50mm |
MOQ | 3 MT, or depend on the specification |
Production Line | DC and CC |
Application | Tool box, Floor, Anti slip usage, Truck body, Stair treads, Vehicle steps, Building, Construction, Decoration, Mechanical etc. |
Packaging | Packed and labeled according to customer’s requests. Avoid damage during storage or transportation. Clear labels are tagged on the outside of the packages for identify product ID and quality information. |
Kindly attention | Custom made, if any questions, pls do feel free to contact us. |
1. Accurate size, good anti-slip effect,wide range of applications
2. Strong plasticity, easy forming and excellent processing performance.
3. Aluminium chequer tread plate can form a dense and strong oxide film on aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance.
4. Good elongation and tensile strength, fully able to meet the normal processing requirements (stamping, stretching), high formability.
5. The surface quality of aluminium chequer tread plate is good, no oil spots, waves, scratches, roller marks, neat trimming, no burrs.
●Loading Ramps
●Stair Tread
●Flooring
●Dock Plate
●Decorative purposes
●Fire Trucks
●Ambulances
●Recreational Vehicles
