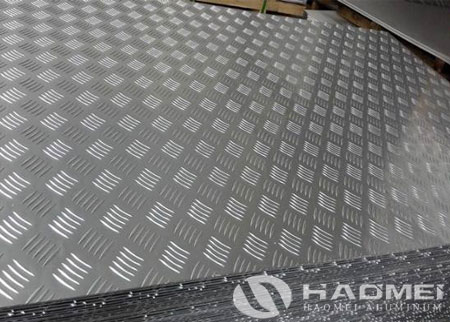

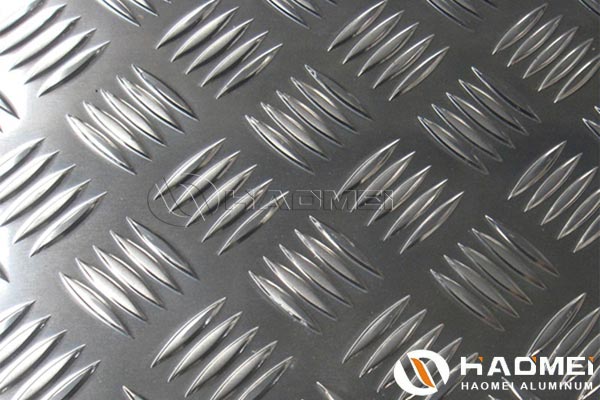

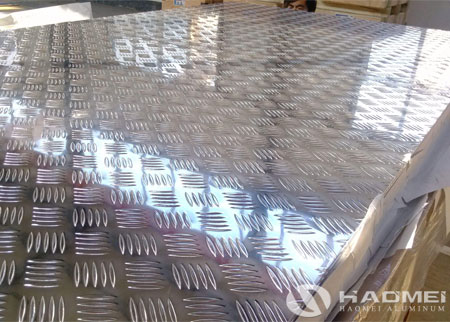

Haomei Aluminum offer various aluminium chequered plate thickness with an tread pattern on the plate surface. Made in a light soft alloy, aluminium chequer plate is used for anti slip and a wide range of decorative purposes. It is often used for trimming cars, utes and vans because of its highly polished finish. You are able to buy less than full-sized sheets and we can guillotine these to your size (right angle cuts only).
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |
Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
Anti-skid. It is benefit from the raised surface of the checker plate.
Anti-corrosion and rust. The aluminum and galvanized material can help the checker plate from the corrosive and dusty environments.
Anti-high temperature and alkaline.
Decorative. The bright surface, especially the polished aluminum checker plate has outstanding decorative affection.
Easy to install and economical. They are one-piece structure and lightweight, we can install them with few people and less cost.
1. Floor Covering for hygiene and slip resistance
2. Door Protection as kick plates or as a full door cladding
3. Wall and Column Protection to prevent impact damage where hand trucks, trolleys, sack carts etc are operated.
4. Vehicle body, Vans, Trailer tailgate ramps and flooring.
5. Access Ramp covering for wheelchairs
6. Truck Bed, Tool Boxes
7. Stair Treads, Step Ladders, Walkways
