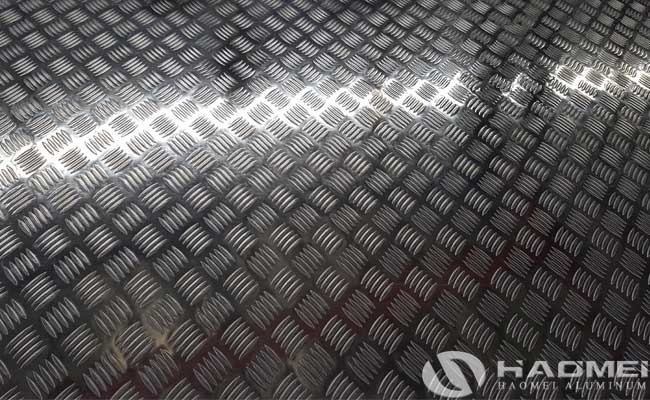

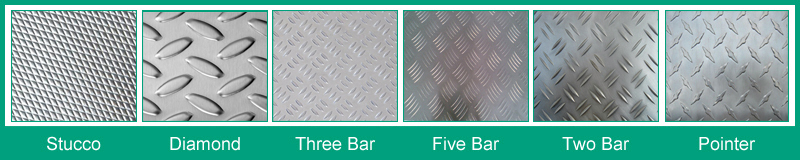

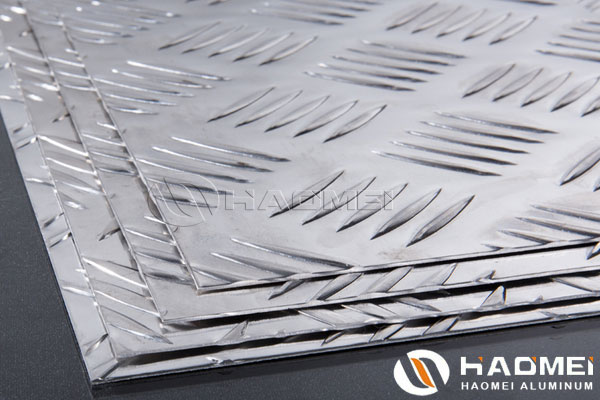

The aluminium chakkar plate have different patterns on the surface by process the aluminum flat plate again. The different patterns formed on chakkar plate including orange peel pattern, diamond pattern, 2 bars pattern, 3 bars pattern, 5 bar pattern and so on.
Alloy No. | Thickness | Width | Length | Temper |
A1050, A1060, A1070, A1100 | 1.0-10 | 20-2200 | 20-8000 | H12,H22,H14,H16,H18, H24,H26,etc |
3A21, A3003, A3105, A3004 | 1.0-10 | 20-2200 | 20-8000 | H14,H18,H24,etc |
A5052 , A5005, A5083, A5754 | 1.0-10 | 20-2200 | 20-8000 | H18,H24,H32,H34,H111,H112 ,etc |
A6061, A6082, A6063 | 1.0-10 | 20-2200 | 20-8000 | T4,T6,,etc |
A8011 | 1.0-10 | 20-2200 | 20-8000 | H12,H22,H14,H16,H18,H24,H26, etc |
Standards:ASTM-B209. EN573-1, GB/T3880.1-2006 | ||||
MOQ | 5 tons | |||
Kind attention : Specifications can be customized as the customer's requirements. | ||||
Anti-skid. It is benefit from the raised surface of the checker plate.
Anti-corrosion and rust. The aluminum and galvanized material can help the checker plate from the corrosive and dusty environments.
Anti-high temperature and alkaline.
Decorative. The bright surface, especially the polished aluminum checker plate has outstanding decorative affection.
Easy to install and economical. They are one-piece structure and lightweight, we can install them with few people and less cost.

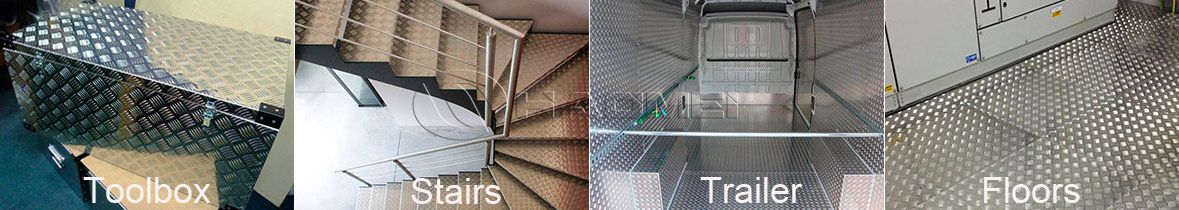

Ramps, Toolboxes, Decorative flooring and walls, vehicle running bars and kick plates, Trailers, Dock surfaces, Stairways.
For vehicle applications like steps and risers, battery and fuel tank covers, bumpers and kick plates.
For building applications like door kick plates, hatch covers, working platforms, steps and ramps.
