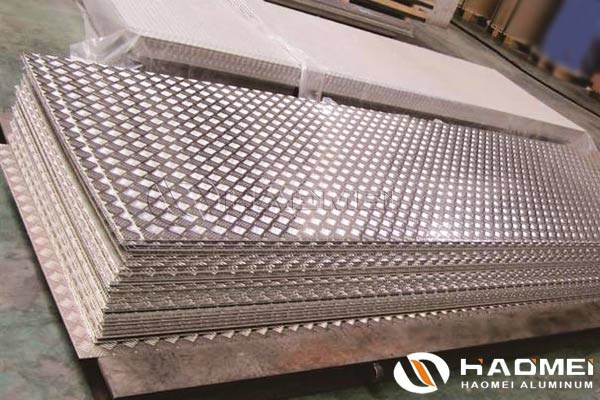

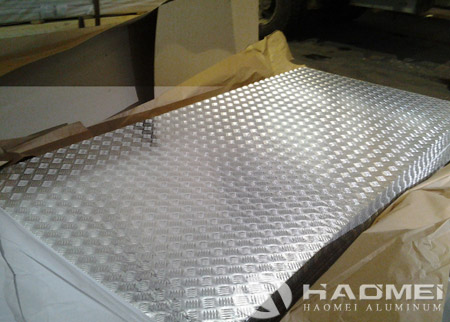

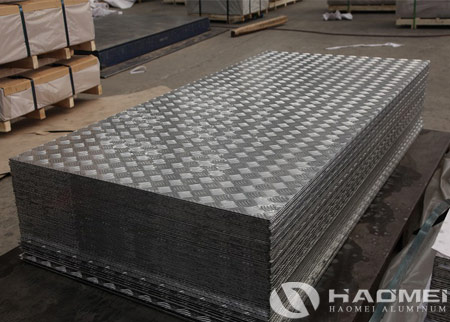

8x4 aluminium chequer plate can be used for floors, stair steps, tiling for other surfaces, and various architectural uses. Since it is easy to machine along with being robust and attractive, tread plate tool boxes are another popular application. It is frequently employed to finish edges and corners of items made of other materials, where an extra element of wear-resistance is required.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |
Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
A. Aluminium chequer plate has good skid resistance. So it is usually used in the loading ramps, trench covers, dock flooring, stair treads and even for the car, truck, ambulance and fire truck.
B. It has the decorative function, so it can be used as decoration wall panels, cabinet and ceilings.
C. Because of the anti- corrosion, it can be used in the chemical industry, or in the decoration of the ship and port facilities.
Loading Ramps/Dock Plate
Stair Tread
Flooring
Fire Trucks
Ambulances
Other
