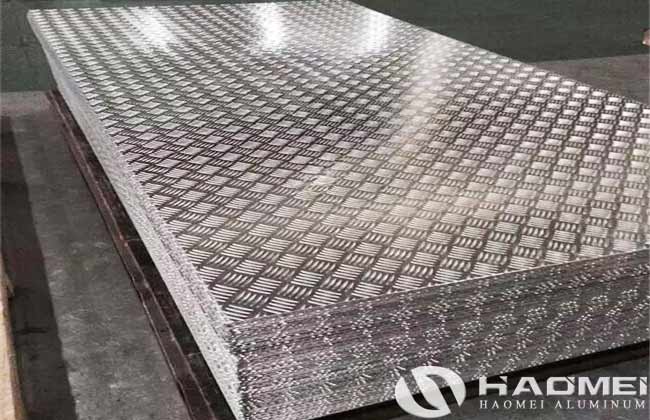

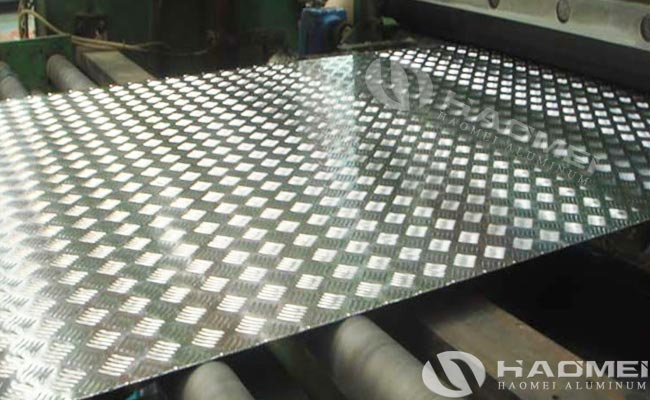

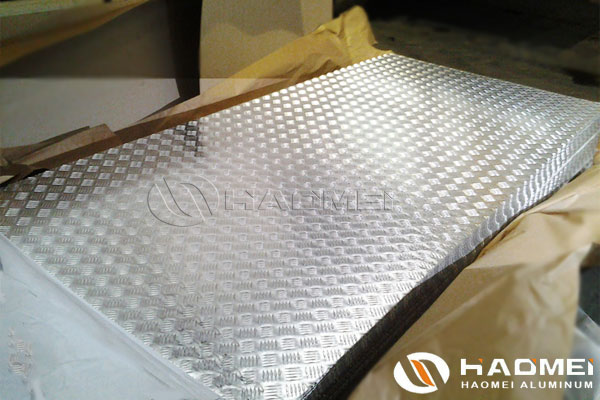

Haomei Aluminum offer high quality 5mm checker plate with low cost and corrosion resistance. Because of the use of raw materials under strict quality was under control, we have a stable chemical composition and mechanical properties of the 5mm aluminium checker plate.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |

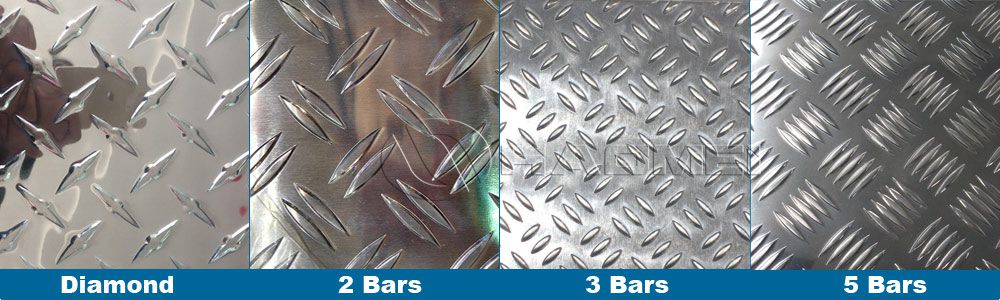

Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |

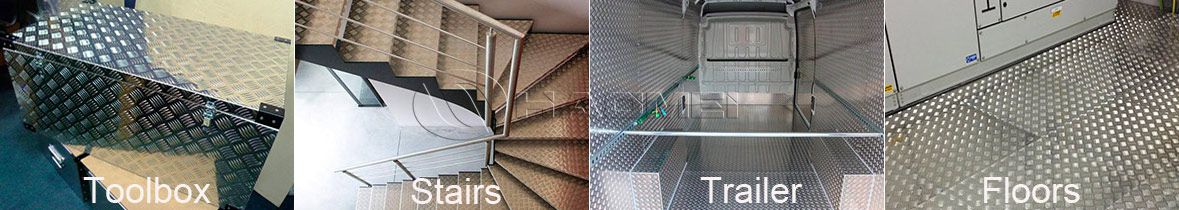

Anti-skid. It is benefit from the raised surface of the checker plate.
Anti-corrosion and rust. The aluminum and galvanized material can help the checker plate from the corrosive and dusty environments.
Anti-high temperature and alkaline.
Decorative. The bright surface, especially the polished aluminum checker plate has outstanding decorative affection.
Easy to install and economical. They are one-piece structure and lightweight, we can install them with few people and less cost.
1) very high quality with the third party inspection: SGS, BV, CE,COC, AL and other
2) good price with flexible payment:TT, L/C etc.
3) short lead time and on time delivery
4) free samples and freight charges in your side
5) professional service
