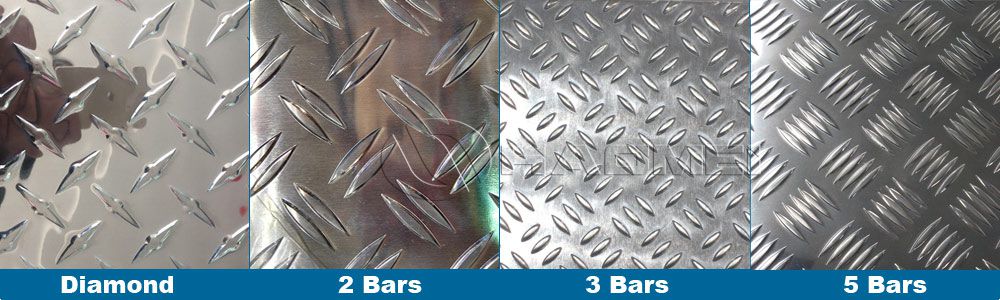

5083 aluminum checker plate have pettern types of diamond, two bars, three bars, five bars checker plate, etc. 5086 aluminum tread plate are widely used in construction, vehicles, ships and other non-slip flooring, decoration and other fields.
5083 aluminium checker plate price is more expensive than that of 1000 series and 3000 series, which ensures that the checker aluminum plate used in construction has high wind pressure resistance, assembly performance, corrosion resistance and decoration performance.
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Each | Total | Alu |
5083 | 0.4 | 0.4 | 0.10 | 0.40-1.0 | 4.0–1.0 | 0.05-0.25 | – | 0.25 | 0.15 | – | – | 0.05 | 0.15 | Remainder |
Alloy | 5083 | |
Temper | H111, H321, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |
Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
<

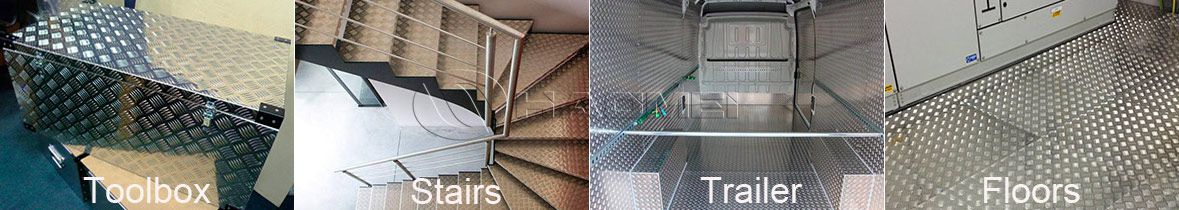

Aluminum 5083 material has excellent corrosion resistance in seawater, 5083 anti slip checkered plate is widely used in ship-building industry. Mainly for fabricating of ship decking, corridor floor, passageway, stairway, warehouse flooring, bridges floors, stairs, cabin deck, gangway to the floating docks, etc.
1. Tensile strengthσb(MPa) : 110-136, elongationδ1010 (%) : ≥20, yield strength s (MPa) : ≥110.
2. Good plasticity, easy to process, good forming performance.
3. Strong weldability, suitable for gas welding, arc welding, contact spot welding and wire welding.
4. The checker aluminum plate has anti-slip function, but the 5083 checker aluminum plate also has anti-rust and anti-corrosion performance.
5. Aluminum is recyclable, environmental protection and energy saving.
1. Reasonable production arrangement to make delivery very fast;
2. We are able to provide leading tolerances, metallurgical assistance, quick and reliable delivery, samples for 5083 aluminum tread plate, etc.
3. We have the strong capability to meet your special requirement.
4. To guarantee the quality of the products we can meet most of the standards all over the world such as ASTM standard.
