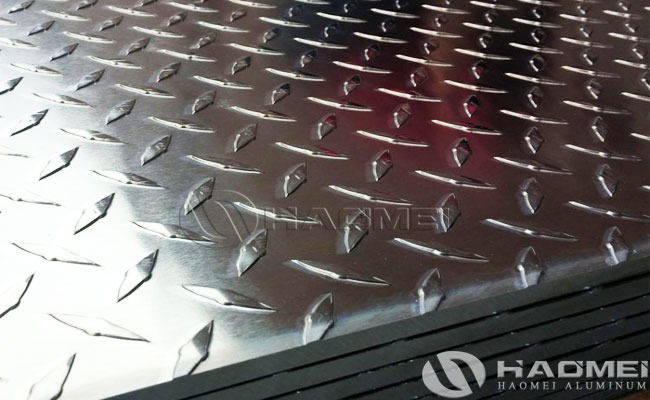

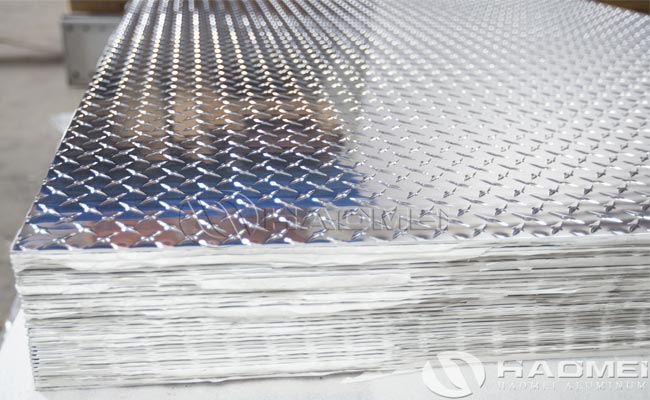

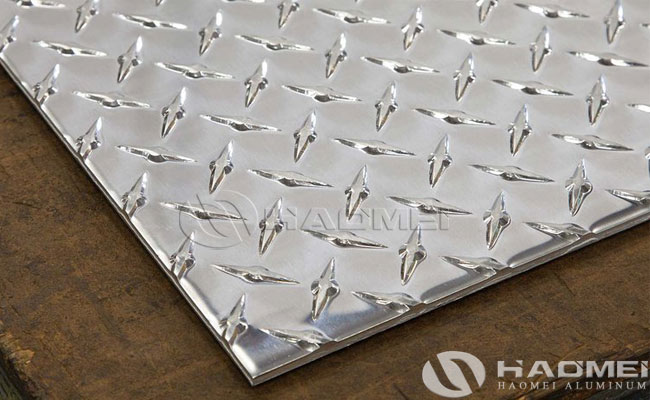

Aluminum diamond plate 48 x 96 is widely used in transportation, construction, decoration, floor around equipment, machinery, shipbuilding and other fields. Due to their easy cleaning and high brightness, 48 x 96 aluminum diamond plate have been widely used in construction, especially in the decoration field. 48 x 96 diamond plate can be seen a common seize of aluminum diamond plate, and Haomei aluminum diamond plate 48x96 won good market reputation.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |
Bar Difference | 1 Bar, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
Skid-resistance.
Resist rust.
Resist corrosion and long life.
Lighter than other material.
Remain high value after being replaced.
Decorative function.
Loading Ramps/Dock Plate
Stair Tread
Flooring
Fire Trucks
Ambulances
Other
1. Reasonable production arrangement to make delivery very fast;
2. We are able to provide leading tolerances, metallurgical assistance, quick and reliable delivery, samples for new aluminum tread plate, etc.
3. We have the strong capability to meet your special requirement.
4. To guarantee the quality of the products we can meet most of the standards all over the world such as ASTM standard.
