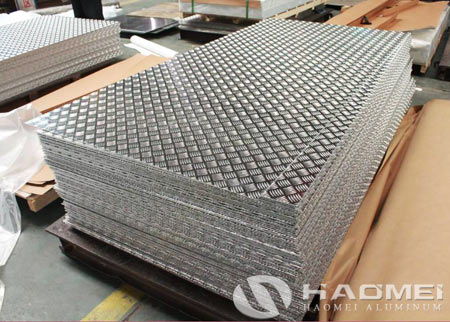

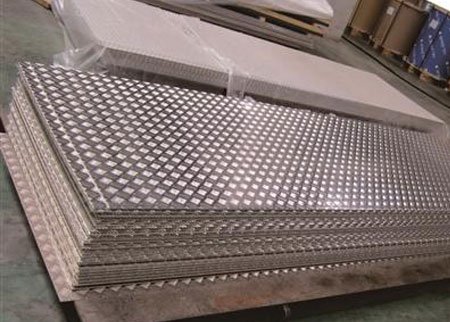

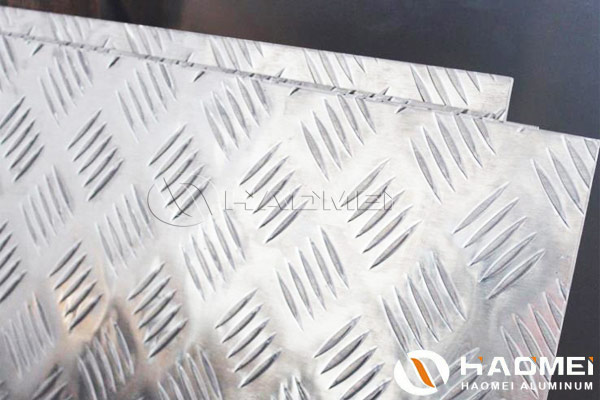

Haomei high-quality 3mm aluminium chequer plate features a raised pattern on one side and the reverse side is featureless. It is highly suitable for many practical and decorative applications including floors, walls, trailers, garages, and gyms.
Item | aluminum chequered plate |
Grade | 1050, 1060, 1100, 3003,5052, 5083, 5086, 6061 etc. |
Temper | O, H12, H14, H16, H18, H24, H24, H26, H32, H34 |
Standard | ASTM-B209. EN573-1, GB/T3880.1-2006 |
Thickness | 0.8 - 12mm |
Width | 400-1220mm |
Length | max 6000mm for sheet or as required for coil |
Pattern | big 5 bar / small 5 bar / 3 bar / diamond / pointer |
Surface treatment | polished, mill finished, power coated, sand blast, anodized, brushed. |
Surface Protection | Oleo phobic coating,protective film,paint coating. |
Packing | Export wooden pallets. The bundle weight not exceed 2MT. Loading:by 1x20GP. |
Quality | Totally free from defects like white rust, oil patches,roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
MOQ | 1-2 Metric ton |
Free sample | Available |
Delivery time | 20-30 days after deposit |
Anti-skid. It is benefit from the raised surface of the checker plate.
Anti-corrosion and rust. The aluminum and galvanized material can help the checker plate from the corrosive and dusty environments.
Anti-high temperature and alkaline.
Decorative. The bright surface, especially the polished aluminum checker plate has outstanding decorative affection.
Easy to install and economical. They are one-piece structure and lightweight, we can install them with few people and less cost.
●Loading Ramps
●Stair Tread
●Flooring
●Dock Plate
●Decorative purposes
●Fire Trucks
●Ambulances
●Recreational Vehicles
