3003 Aluminum Tread Plate: Series3003; TemperH12, H14, H16, H18, H22, H24, H111, T6; Thickness0.8-10.0 mm; Width20-1950 mm; ApplicationDecoration,Tool box, Floor, Anti slip, Truck body, Stairs; send email Inquiry

DESCRIPTION

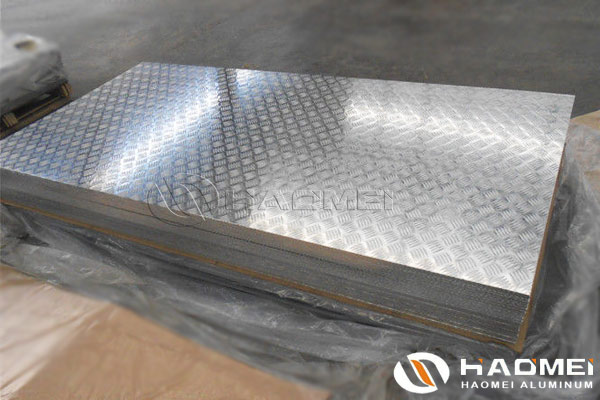

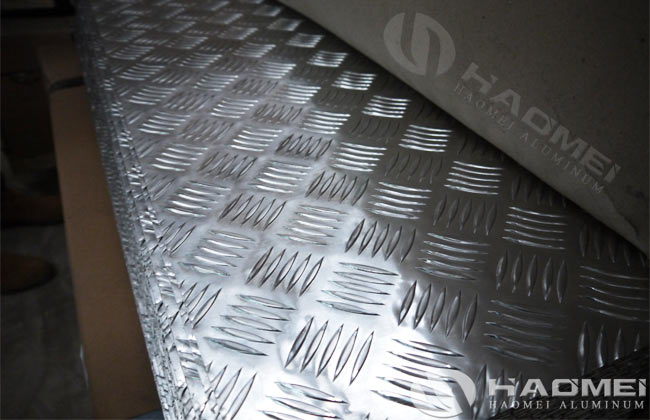

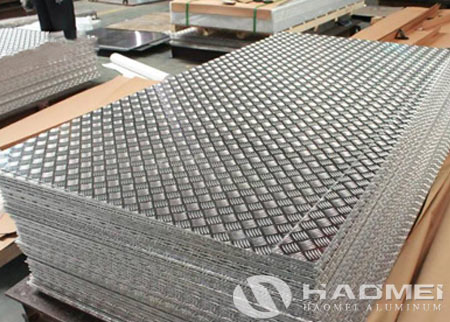

3003 Aluminum Tread Plate

3003 aluminum tread plate stands up to outdoor use, as well as exposure to chemicals. It offers a good combination of strength, formability and weldability.

3000 series aluminium checker plate, has a good anti-rust performance, but also can be used for some wet sections of anti-slip. For example, non-slip floors in frozen warehouses, fresh areas in supermarkets, refrigerated trucks, and toilets in major shopping malls. 3003 aluminum tread brite can also be used in places with a certain slope, such as ramps and stairs.

Alloy

Each

Total

Alu

3003

0.6

0.7

0.05

0.05-0.2

1.0-1.5

–

0.10

–

0.05

0.15

Remainder

Specification of 3003 Aluminum Tread Plate:

Alloy	3003
Temper	H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
Surface	Bright Finish, Mill Finish
Bar Difference	Five Bar, Stucco, Compass, Diamond.
Available Dimension
	Mill Finish Surface	Bright Finish Surface
Thickness	1.0---6.5mm	1.2---6.5mm
Pattern Height	Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm
	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm
	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm
Width	Maximum 1500mm	Maximum 1650mm
Length	Maximum 6000mm	Maximum 6000mm
Paper Interleaves	On Request For Selected	On Request For Selected
Normal Size	1200x2400mm, 1219x2438mm, 1219x3048mm	1200x2400mm, 1219x2438mm, 1219x3048mm

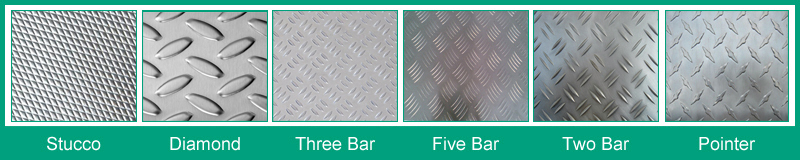

Patterns of 3003 Tread Plate:

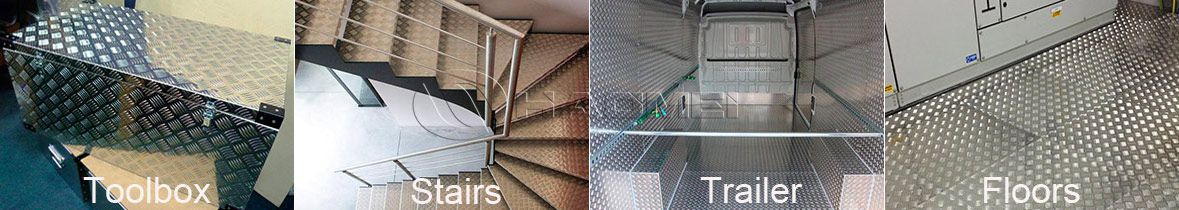

Application of 3003 Tread Brite:

1. Floor Covering for hygiene and slip resistance

2. Door Protection as kick plates or as a full door cladding

3. Wall and Column Protection to prevent impact damage where hand trucks, trolleys, sack carts etc are operated.

4. Vehicle body, Vans, Trailer tailgate ramps and flooring.

5. Access Ramp covering for wheelchairs

6. Truck Bed, Tool Boxes

7. Stair Treads, Step Ladders, Walkways

Advantages of 3003 Aluminum Tread Plate:

Skid-resistance.

Resist rust.

Resist corrosion and long life.

Lighter than other material.

Remain high value after being replaced.

Decorative function.
