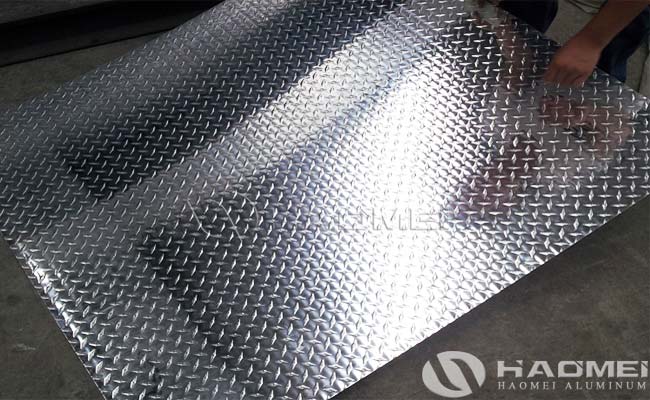

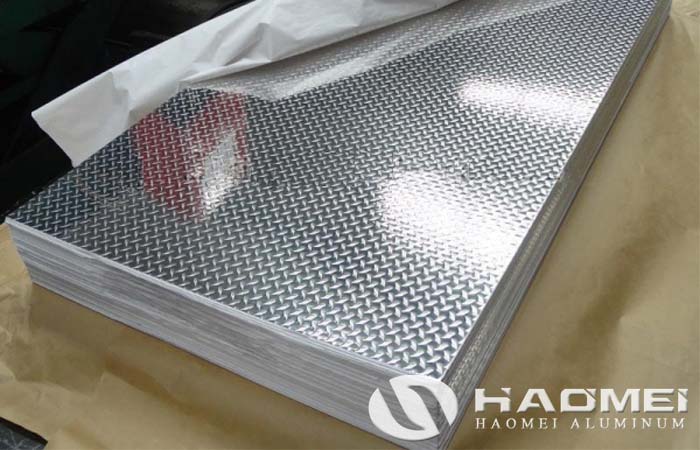

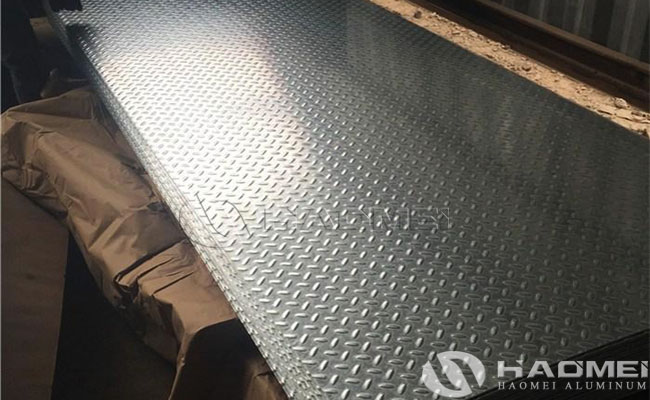

0.25 aluminum diamond plate 4x8 sheet is a common diamond plate specification, and 0.25 stands for 0.25 inch, 1/4 inch, about 6.35mm thick. 1/4 inch is a common thickness, and 4x8 is a common size, so the 4x8 sheet of 1 4 inch aluminum diamond plate is widely required by our customers. 4x8 1 4 aluminum diamond plate can be used for floors, stair steps, tiling for other surfaces, and various architectural uses.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |
Bar Difference | 1 Bar, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 0.25 inch, 1/4 inch, 1/8 inch | 0.25 inch, 1/4 inch, 1/8 inch |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
A. Aluminum diamond plate 4x8 sheet has good skid resistance. So it is usually used in the loading ramps, trench covers, dock flooring, stair treads and even for the car, truck, ambulance and fire truck.
B. It has the decorative function, so it can be used as decoration wall panels, cabinet and ceilings.
C. Because of the anti- corrosion, it can be used in the chemical industry, or in the decoration of the ship and port facilities.
·Loading Ramps
·Stair Tread
·Flooring
·Dock Plate
·Dock Board
·Decorative purposes
·Fire Trucks
·Ambulances
·Recreational Vehicles
