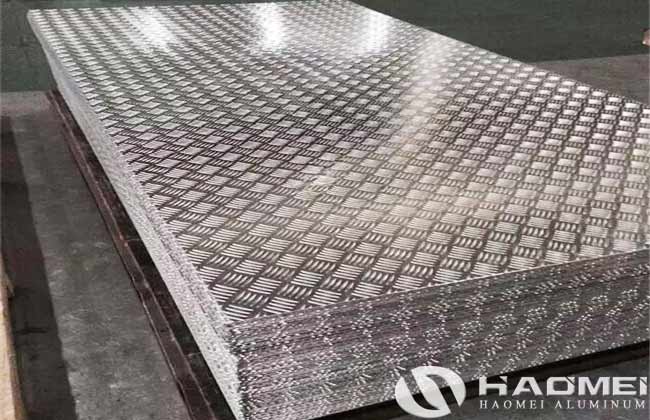

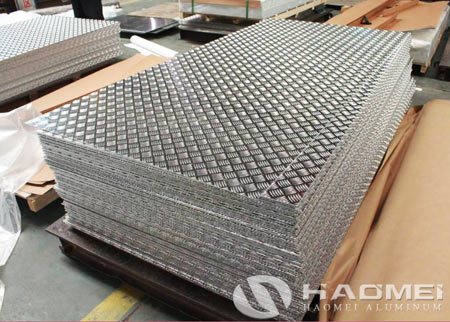

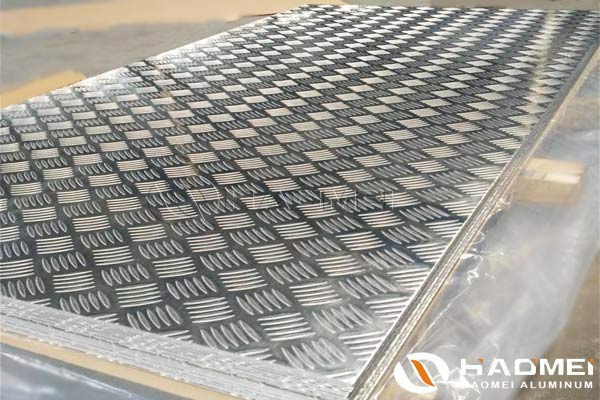

Aluminum Tread Plate Sheet

Aluminum Tread Plate Sheet: Series1050, 1060, 1100, 3003, 5052, 5083, 5086, 6061; TemperH12, H14, H16, H18, H22, H24, H111, H114, T6; Thickness0.8-10.0 mm; Width20-1950 mm; ApplicationTool box, Floor, Anti slip, Truck body, Stair treads; send email Inquiry

DESCRIPTION

Aluminum tread plate sheet also named as aluminum tread plate or aluminum tread sheet. It is easy to fabricate and its raised diamond, bar, pointer, lug pattern provides good slip resistance. Which has good forming, drilling and welding abilities and widely used in car pedals, anti-skid part in station, factory, etc. Some bright surface products can also be used in architectural decorations.

Specification of Tread Plate Sheets:

Alloy	1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082
Temper	H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
Surface	Bright Finish, Mill Finish
Bar Difference	Five Bar, Stucco, Compass, Diamond.
Available Dimension
	Mill Finish Surface	Bright Finish Surface
Thickness	1.0---6.5mm	1.2---6.5mm
Pattern Height	Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm
	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm	Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm
	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm	Sheet Thickness Above 2.0mm, Bar Height: 1.5mm
Width	Maximum 1500mm	Maximum 1650mm
Length	Maximum 6000mm	Maximum 6000mm
Paper Interleaves	On Request For Selected	On Request For Selected
Normal Size	1200x2400mm, 1219x2438mm, 1219x3048mm	1200x2400mm, 1219x2438mm, 1219x3048mm

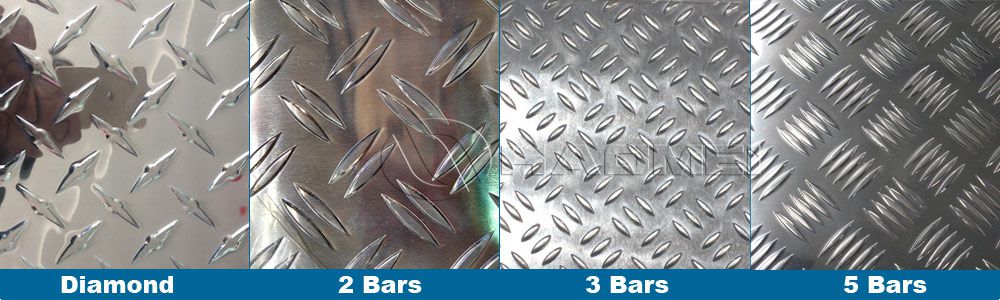

Pattern of Aluminum Tread Plate Sheet:

Features of Aluminium Tread Plate Sheet:

Skid-resistance.

Resist rust.

Resist corrosion and long life.

Lighter than other material.

Remain high value after being replaced.

Decorative function.

Application of Tread Plate Aluminum Sheets:

Floor Covering for hygiene and slip resistance.

Wall and column protection to prevent impact damage where hand trucks, trolleys, sack carts are operated.

Door protection as kick plates or as a full door cladding.

Commercial vehicle and vans.

Access ramp covering for wheelchairs.

Livestock trailer tailgate ramps and flooring.

Land rover and other off road vehicle body protection, bonnets, wings, sills, corners, floors, bumpers, mud flaps, door plates, side plates, load area plates.

Truck Bed Tool Boxes.

Stair treads, step ladders, walkways.

Shop front facial for vandal protection.
