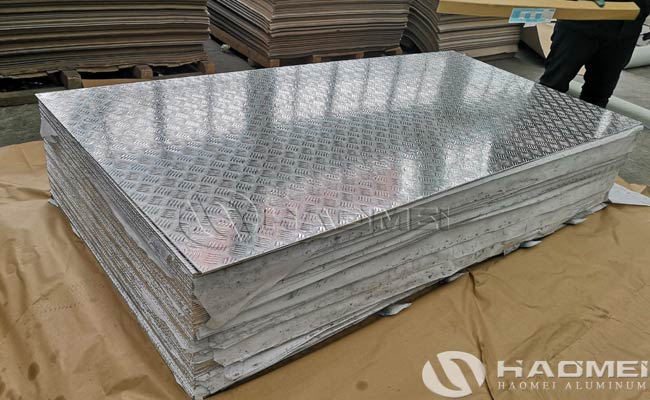

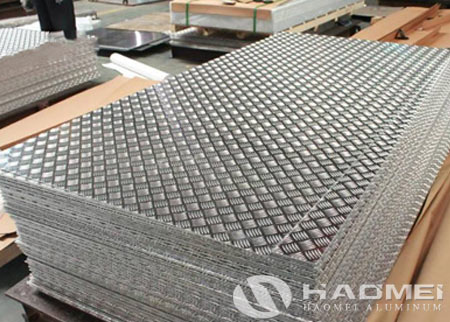

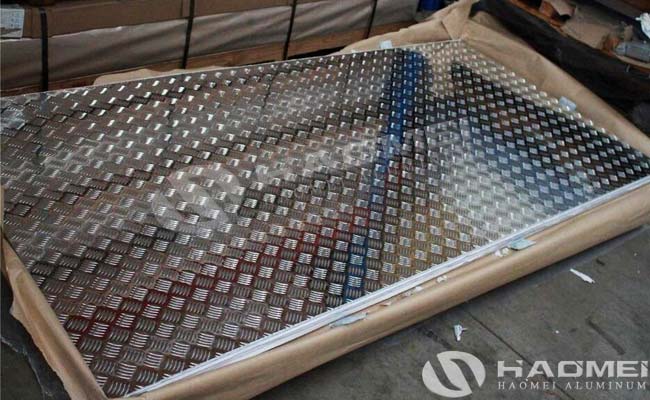

Aluminum chequer plate cut to size is widely used in decorative, shipbuilding and architectural applications. Having good forming, drilling and welding ability, aluminium chequered plate specification is easy to fabricate and its raised diamond lug pattern provides good slip resistance.
Alloy | 1050, 1060, 1100, 3003, 3004, 3105, 5052,5083, 5086, 5754, 6061 |
Temper | O, H12, H14, H16, H18, H22, H24, H111, H114, T6 |
Thickness | 0.8-10.0 mm |
Width | 20-1950 mm |
Length | 500-6000 mm or in Coil |
Surface | Bright finish, Mill finish, Mirror Finish, high polished |
Pattern | 5 Bars, 3 Bars, 2 Bars, 1 Bar, Diamond pattern |
Pattern height | 0.7-2.5mm |
Pattern Length | 35mm-50mm |
MOQ | 3 MT, or depend on the specification |
Production Line | DC and CC |
Application | Tool box, Floor, Anti slip usage, Truck body, Stair treads, Vehicle steps, Building, Construction, Decoration, Mechanical etc. |
Packaging | Packed and labeled according to customer’s requests. Avoid damage during storage or transportation. Clear labels are tagged on the outside of the packages for identify product ID and quality information. |
Kindly attention | Custom made, if any questions, pls do feel free to contact us. |
1. Accurate size, good anti-slip effect,wide range of applications
2. Strong plasticity, easy forming and excellent processing performance.
3. Aluminium chequer plate can form a dense and strong oxide film on aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance.
4. Good elongation and tensile strength, fully able to meet the normal processing requirements (stamping, stretching), high formability.
5. The surface quality of aluminium chequered plate is good, no oil spots, waves, scratches, roller marks, neat trimming, no burrs.
1. Floor Covering for hygiene and slip resistance
2. Door Protection as kick plates or as a full door cladding
3. Wall and Column Protection to prevent impact damage where hand trucks, trolleys, sack carts etc are operated.
4. Vehicle body, Vans, Trailer tailgate ramps and flooring.
5. Access Ramp covering for wheelchairs
6. Truck Bed, Tool Boxes
7. Stair Treads, Step Ladders, Walkways
