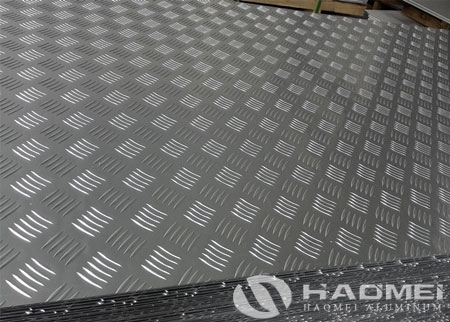

The 6061 aluminum diamond plate has the highest corrosion resistance of all the aluminums that have been heat treated. It is an alloy that has been formed with silicon and magnesium. The machinability rating of 6061 diamond plate is 90 percent, due to its excellent mechanical properties also has great joining capabilities.
The applications 6061 aluminum tread plate are frequently used for include base plates, truck components, marine fittings, marine components, marine hardware, electrical connectors, electrical fittings and camera lens mounts. It also has the capability to be used for heavy duty structures that need corrosion resistance and good weight-to-strength ratio.
Chemical Analysis of aluminum alloy Plate | ||||||||||
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | - | Remains |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45 | 0.1 | - | 0.1 | - | Remains |
6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | Remains |
Model Grade | 6061 |
Temper | H114 |
Thickness | 1mm-6mm |
size | 1200x2400; 1000x2000; 1250x2500; 1500x3000 |

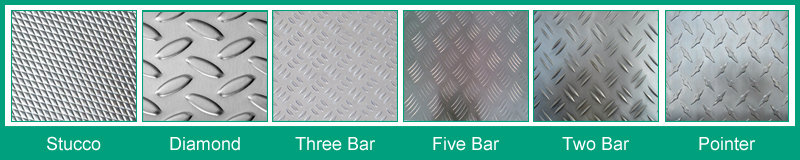

pattern | Big 5 bars; small 5 bars; diamond; 3 bar; pointer, etc |
Alloy or Not | Alloy |
Surface treatment | Mill finished |
MOQ | 3MT-5MT; |
Technology standard | GB/T 3880/ASTM.B209/EN485 |

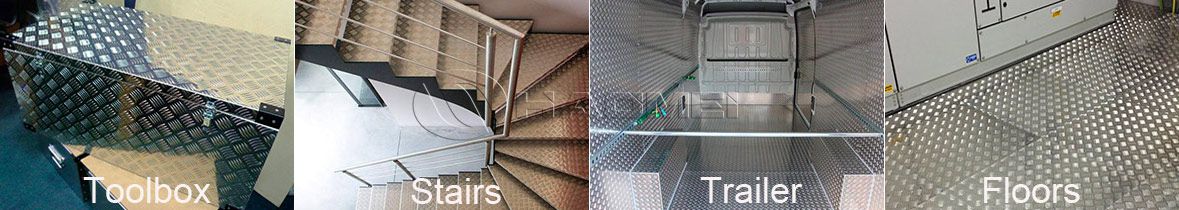

a. Light rail, vehicle, decorated inside and outside the car, footplate in the cars
b. Roofs, facade cladding, ceilings, decoration, building frame, windows, doors, construction
c. Stair treads, fuel tanks, piping, appliance fittings, etc
Strength, skid resistance, and durability are the primary selling points of this product.
Strength — 6061 tread sheet and plate is heat treated and aged to the -T6 temper to provide the highest strength standard tread product available. This property makes 6061 tread ideally suited for consideration in applications where heaviest loading is involved.
Durability — Long-term performance in loading ramp, trench cover, dock board, dock plate, flooring, stair tread, and other similar applications has established 6061-T6 tread as a preferred product. High strength is combined with corrosion resistance and light weight to highlight 6061 compatibility with many applications.
Skid Resistance — The raised diamond tread design provides improved footing where needed. Improved footing is maintained due to high durability.
1. Reasonable production arrangement to make delivery very fast;
2. We are able to provide leading tolerances, metallurgical assistance, quick and reliable delivery, samples for 6061 tread plate, etc.
3. We have the strong capability to meet your special requirement.
4. To guarantee the quality of the products we can meet most of the standards all over the world such as ASTM standard.
