5 Bar Aluminium Checker Plate

Series1050, 1060, 1100, 3003, 5052, 5083, 6061
TemperH12, H14, H16, H18, H22, H24, H111, T6
Thickness0.8-10.0 mm
Width20-1950 mm
ApplicationDecoration,Tool box, Floor, Anti slip, Truck body, Stairs
send emailInquiry

5 Bar Aluminium Checker Plate

5 bar checker plate is a typical product of aluminium checker plate for anti skid and decoration use. It is suitable for vehicles and ships, mechanical platform pedals, workshop and cold storage floors, and various platform bottom plates. The five bar patterns are distributed in parallel and have a certain decorative effect.

The 5 bar aluminium checker plate can be divided into two patterns: big 5 bar and small 5 bar according to the size of the pattern. The pattern length of the small five bar checker plate is 1 cm to 2 cm smaller than that of the big five bar checker plate. The bar height of aluminium checker plate 5 bar is 1 mm, plus or minus 0.4 mm.

Specification of 5 Bar Checker Plate:


1050, 1060, 1100, 3003,5052, 5083, 5086, 6061 etc.


O, H12, H14, H16, H18, H24, H24, H26, H32, H34


ASTM-B209. EN573-1, GB/T3880.1-2006


0.8 - 12mm




max 6000mm for sheet or as required for coil


big 5 bar / small 5 bar

Surface treatment

polished, mill finished, power coated, sand blast, anodized, brushed.

Surface Protection

Oleo phobic coating, protective film, paint coating.


Export wooden pallets. The bundle weight not exceed 2MT. Loading:by 1x20GP.


Totally free from defects like white rust, oil patches, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set.


1-2 Metric ton

Free sample


Delivery time

20-30 days after deposit

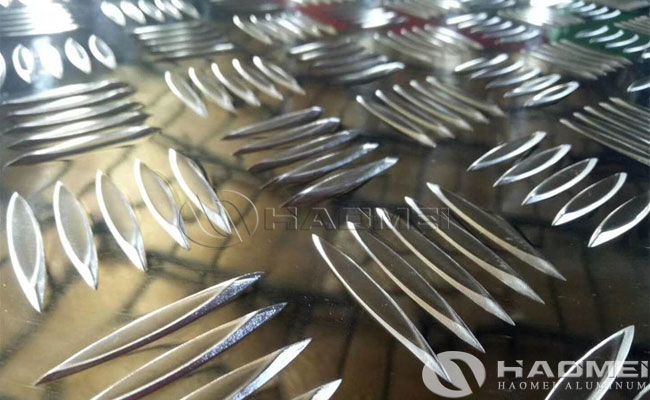

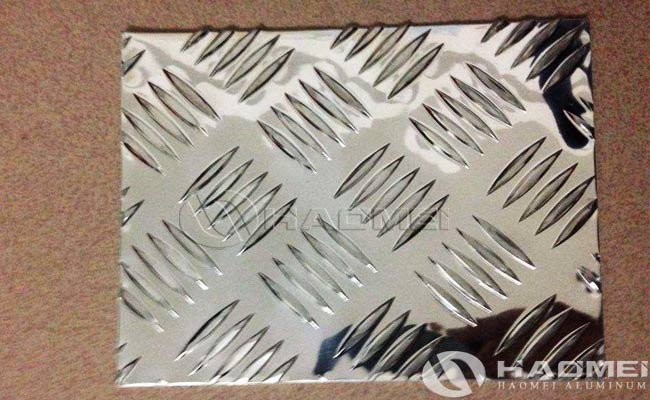

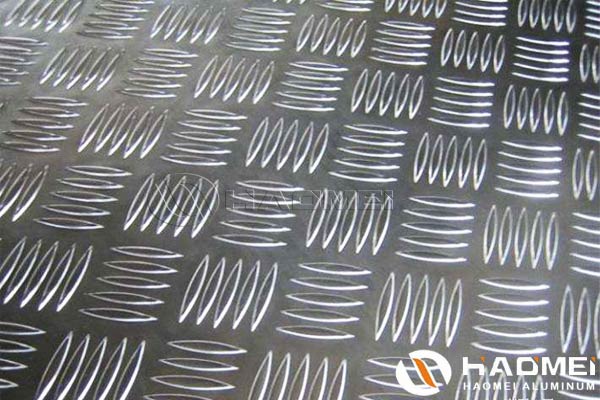

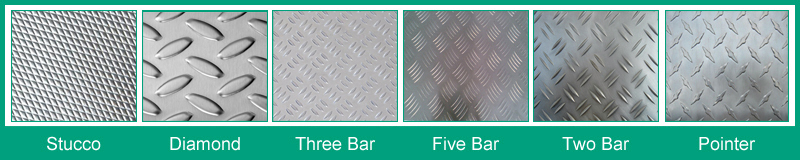

Patterns of 5 Bar Aluminium Checker Plate:

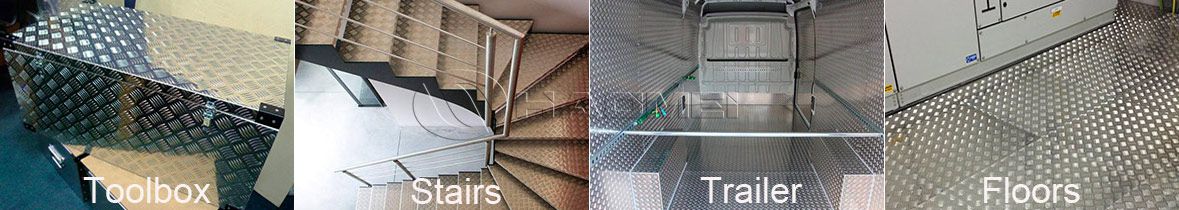

Application of Aluminium Checker Plate 5 Bar:


Advantages of 5 Bar Checker Plate Aluminium:


Resist rust.

Resist corrosion and long life.

Lighter than other material.

Remain high value after being replaced.

Decorative function.

Service of Five Bar Checker Plate:

1. Reasonable production arrangement to make delivery very fast;

2. We are able to provide leading tolerances, metallurgical assistance, quick and reliable delivery, samples for 5 bar aluminium checker plate, etc.

3. We have the strong capability to meet your special requirement.

4. To guarantee the quality of the products we can meet most of the standards all over the world such as ASTM standard.

Contact us now if you have any questions about our company and products. Any of your inquiry and suggestion will be highly appreciated. We will retain your information completely private.
