Diamond Plate Garage Wall

Series1050, 1060, 1100, 3003, 5052, 5083, 6061
TemperH12, H14, H16, H18, H22, H24, H111, T6
Thickness0.8-10.0 mm
Width20-1950 mm
ApplicationGarage wall
send emailInquiry

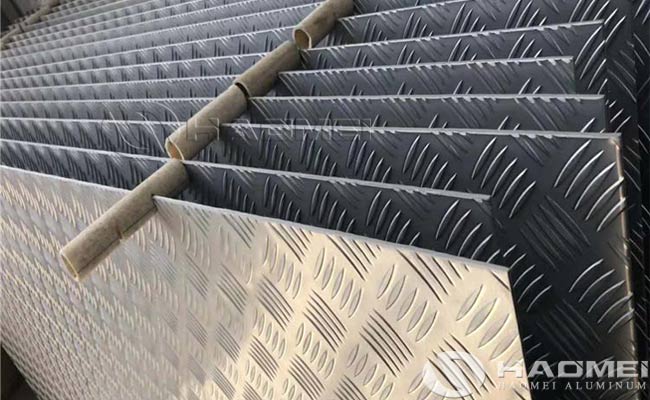

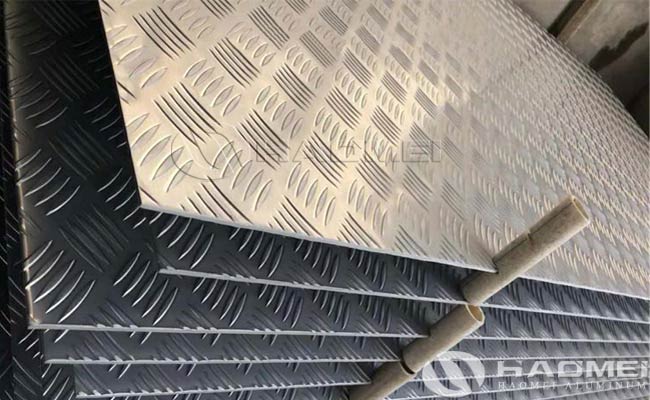

Diamond Plate Garage Wall

Diamond plate garage wall have bright appearance with industrial diamond pattern perimeter of the garage from the floor. Diamond plate wall panels for garage mainy applied 3000 series, 5000 series and 6000 series which have better corrosion resistance and rust resistance.

The specification of Diamond Plate Garage Wall:


1050, 1060, 1100, 3003, 3004, 3105, 5052,5083, 5086, 5754, 6061


O, H12, H14, H16, H18, H22, H24, H111, H114, T6


0.8-10.0 mm


20-1950 mm


500-6000 mm or in Coil


Bright finish, Mill finish, Mirror Finish, high polished


5 Bars, 3 Bars, 2 Bars, 1 Bar, Diamond pattern

Pattern height


Pattern Length



2 MT, or depend on the specification

The advantages of Diamond Plate Wall Panels for Garage:

All Metal Construction

Easy to cut-Cuts and drills like traditional trim. Use cutting blade designed for sheet metal.

Installable onto curved walls

For Radius Area - bendable down to 12" radius wall - purchase custom with no cove bend kick

Easy to Clean

Chemical Resistant-- Resistant to oil, grease, petroleum products and most household chemicals

UV Stable

Use for Protection and Decor

For Commercial, Institutional and Residential Use

Factories, workshops, hotels, retail space, restaurants, architectural spaces, garages and more

Real Commercial Grade Diamond Plate

Not the imitation stamped metal that others use

The application of Garage Diamond Plate Wall Panels:

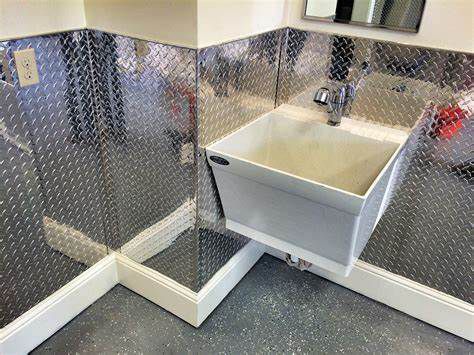

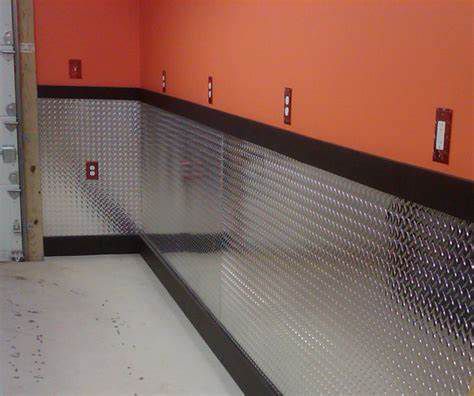

1660902983525857.jpg 1660902983483962.jpg

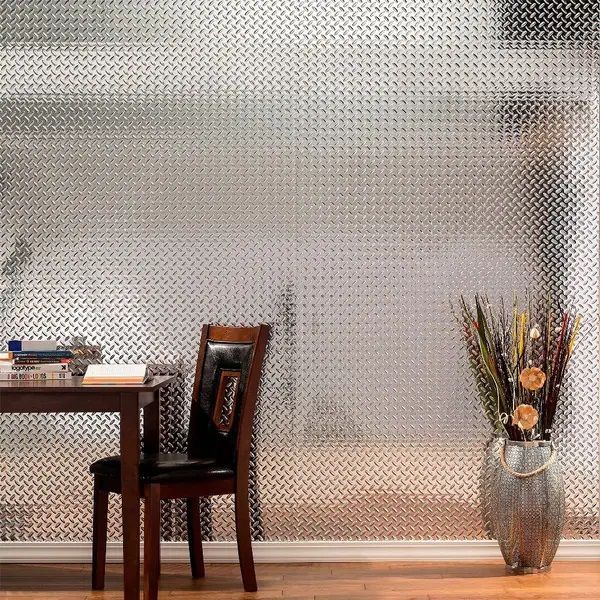

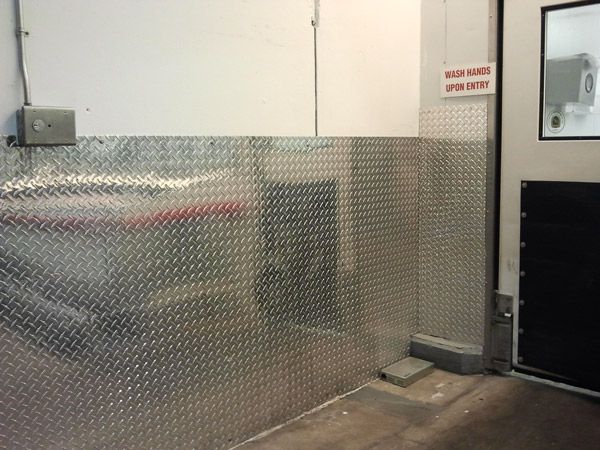

1660902983371022.jpg 1660902983744748.jpg
