At present, Haomei Aluminum offer aluminium checker plate near me products are mainly 1000, 3000, 5000 and 6000 series aluminum alloys, representing checker plate near me products 1060, 3003, 5052, and 6061.
Alloy | 1050, 1060, 1100, 3003, 3105, 5005, 5052, 5754, 5454, 5083, 5086, 6061, 6082 | |
Temper | H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F | |
Surface | Bright Finish, Mill Finish | |

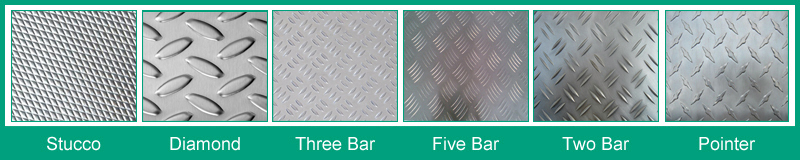

Bar Difference | Five Bar, Stucco, Compass, Diamond. | |
Available Dimension | ||
Mill Finish Surface | Bright Finish Surface | |
Thickness | 1.0---6.5mm | 1.2---6.5mm |
Pattern Height | Sheet Thickness: 1.0 - 2.0mm, Bar Height: 0.5mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 0.5mm |
Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | Sheet Thickness: 1.0- 2.0mm, Bar Height: 1.0mm | |
Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | Sheet Thickness Above 2.0mm, Bar Height: 1.5mm | |
Width | Maximum 1500mm | Maximum 1650mm |
Length | Maximum 6000mm | Maximum 6000mm |
Paper Interleaves | On Request For Selected | On Request For Selected |
Normal Size | 1200x2400mm, 1219x2438mm, 1219x3048mm | 1200x2400mm, 1219x2438mm, 1219x3048mm |
Anti-skid. It is benefit from the raised surface of the checker plate.
Anti-corrosion and rust. The aluminum and galvanized material can help the checker plate from the corrosive and dusty environments.
Anti-high temperature and alkaline.
Decorative. The bright surface, especially the polished aluminum checker plate has outstanding decorative affection.
Easy to install and economical. They are one-piece structure and lightweight, we can install them with few people and less cost.

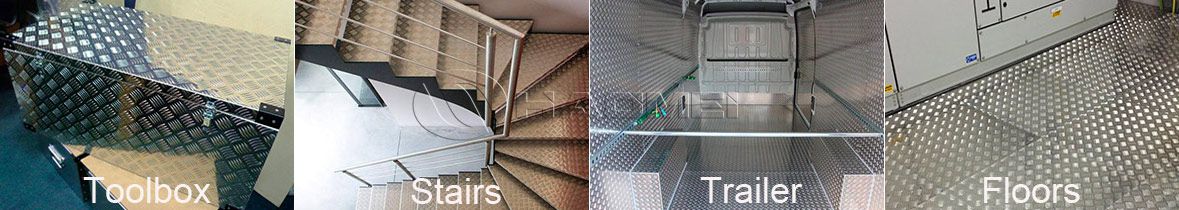

a. Light rail, vehicle, decorated inside and outside the car, footplate in the cars
b. Roofs, facade cladding, ceilings, decoration, building frame, windows, doors, construction
c. Stair treads, fuel tanks, piping, appliance fittings, etc
