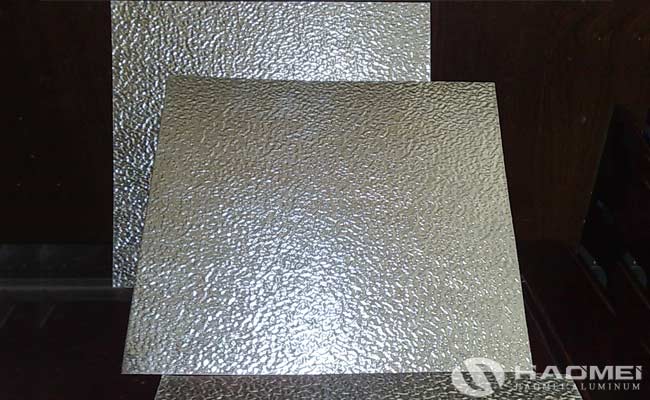

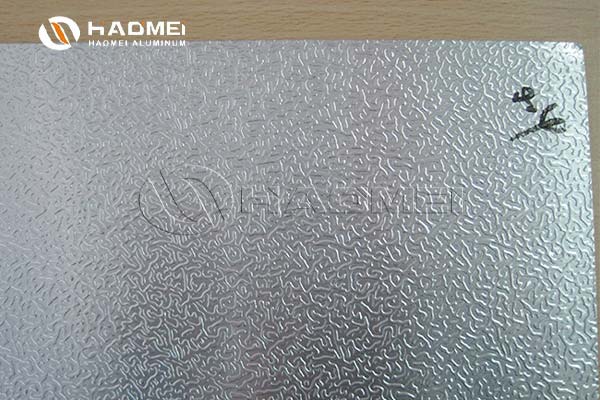

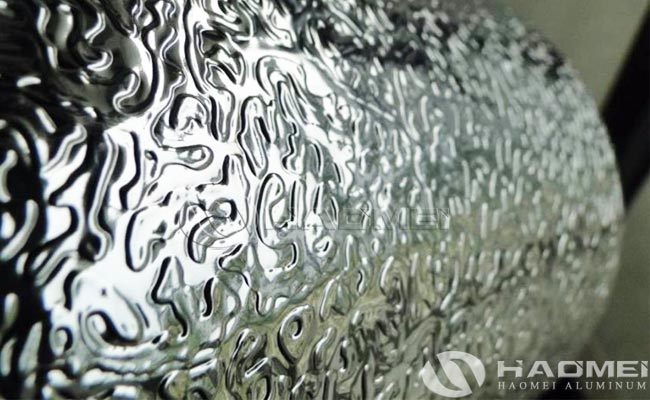

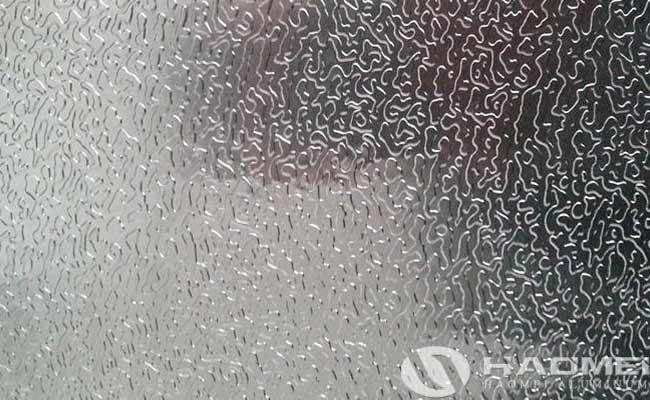

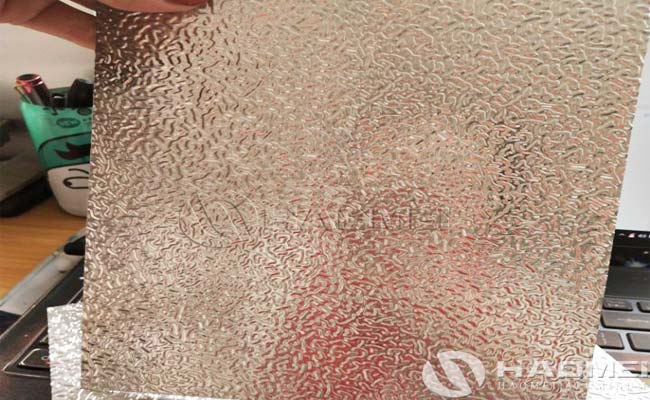

Orange Peel Aluminum Sheet

Series1050,1060,1070, 1100,3003, 5052
TemperO, H12, H22, H14, H24, H16, H18, H26
Applicationrefrigerators, pipe insulation, decoration
send emailInquiry

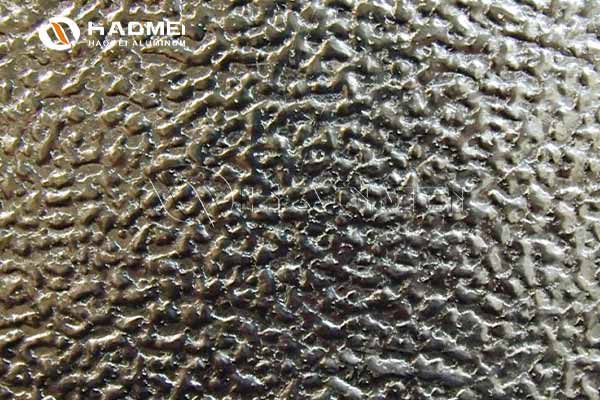

Orange peel aluminum sheet is an ideal material for used in refrigerators, air conditioners, ice-boxes, cold storage, freezer and decorations. In recent years as refrigerators, freezers, air-conditioning refrigeration industry, the development of a technique called orange peel stucco aluminum products caught the attention of the market.

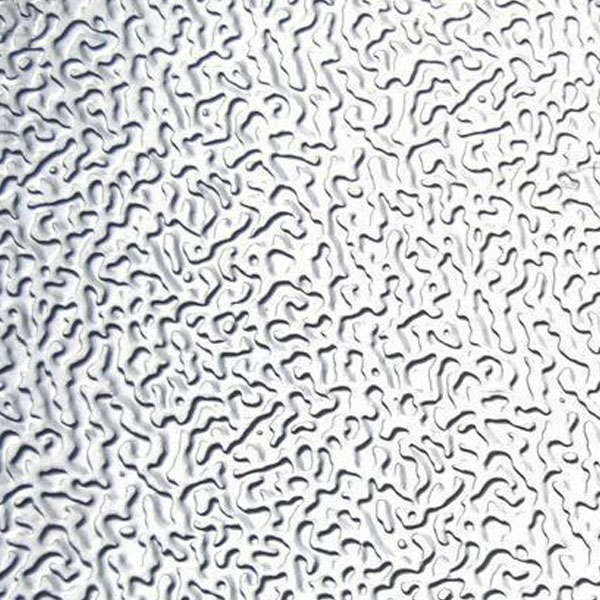

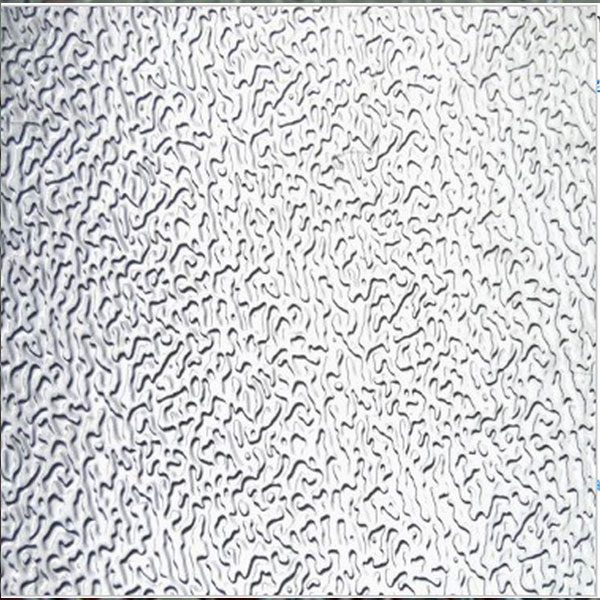

The orange peel embossed aluminum embossed sheet is widely used in refrigeration industry, water heater liner insulation industry, and pipeline insulation industry. The pattern of orange peel aluminum are normal orange peel pattern, classic orange peel pattern and rhombus pattern. The common thickness of orange peel aluminum plate is 0.2, 0.3, 0.35, 0.4, 0.5, 0.6, 0.7, 0.8, 1, 1.2, 1.5, 2, 2.5 and 3mm. The flatness of the orange peel aluminum plate should be very high, especially the thin aluminum sheet. If the flatness is not good, there will be wrinkle deviation or thickness deviation after embossing.

Specification of orange peel aluminum sheet:


1050, 1060, 1070, 1100, 3003, 5052








O, H12, H22, H14, H24, H16, H18, H26


Classic orange peal, Variant orange peel, color coated, mirror finished

Coil Specifications

I.D.: 405mm, 505mm

O.D.: 800mm – 1270mm

Packing Detail

Wooden pallet either eye to wall or eye to sky

Features of orange peel stucco aluminium:

1, High weather resistance

2, Anti scratch

3, anti-corrosion

4, Easy processing and installation

5, High brightness

Application of orange peel embossed aluminum sheet:

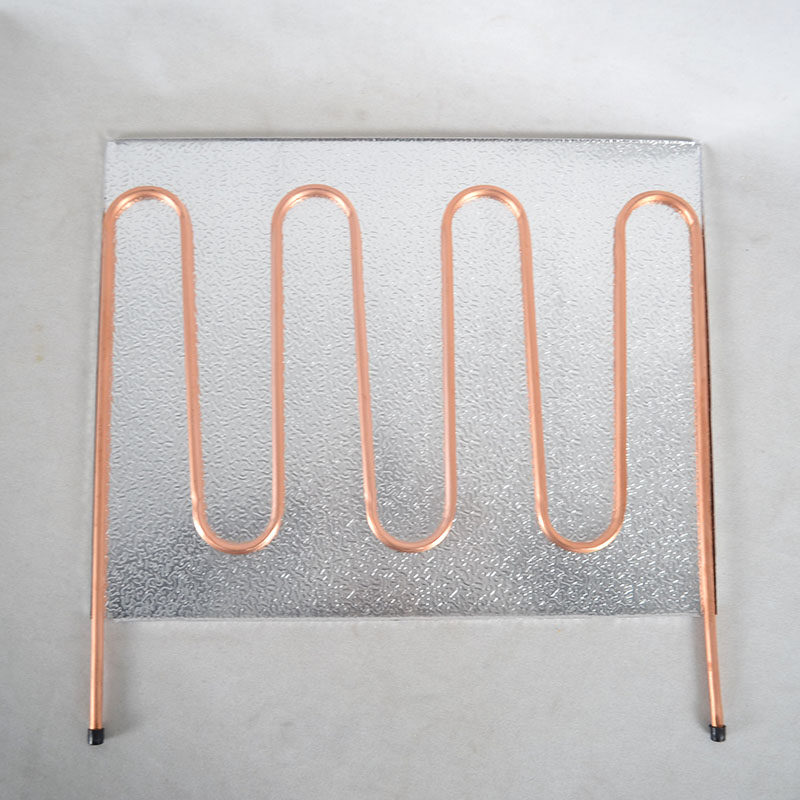

The use of orange peel aluminum pattern for the fridge liner is scientifically based.

Firstly, the embossed aluminum sheet is corrosion-resistant and has good thermal conductivity. The internal environment of the refrigerator is relatively humid. According to the order of metal thermal conductivity, corrosion resistance and production cost, the choice of the aluminum sheet can reduce the cost as much as possible and has excellent corrosion resistance under the premise of ensuring its good thermal conductivity.

Secondly, in order to increase the length and area of heat exchange between the inside of the inner tank and the outside air, the inner tank of the refrigerator uses orange peel aluminum sheet instead of flat aluminum sheet. It contributes to increase the contact area between the air and the liner wall, so as to exchange heat more effectively and evenly.
